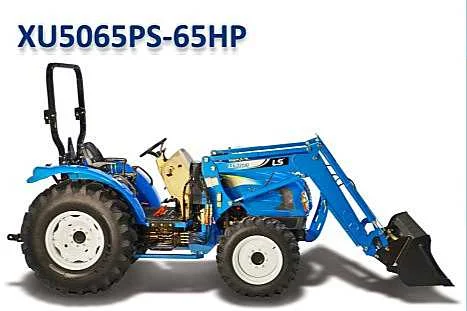

XU 5065PS
For your tougher projects, you need more horsepower, versatility and, of course, comfort. The XU5065PS delivers on all fronts. With over 18% more engine horsepower and nearly 15% more PTO horsepower, the XU5065PS 4WD utility tractor powers through tough soil conditions, cuts through thicker brush and pulls heavy loads up steeper grades by reducing the need to operate at a slower speed. Fully synchronized gears allow changes without stopping. The power shuttle shift transmission allows going from forward to reverse with the simple move of a hand lever and without depressing the foot clutch pedal. And more operating speeds, more front end loader lift capacity, selectable independent or manual PTO, 2 rear remote valves, and extendable lower links help you get your work done more efficiently.
The XU5065PS is powered by an innovative, eco-friendly, TIER 4 engine that delivers powerful , smooth and quiet performance. Carry heavier loads than competitive models with the 3,065 lbs. of front end loader lift capacity. The loader is not only self-leveling, but is quick attach and come standard with the grill guard, skid steer coupler and bucket. Depending on your operation and needs, you can easily select between independent or manual PTO with the turn of a switch. Two sets of rear remote valves allow quick and easy attaching of hydraulically operated implements like rakes, backhoes, wood splitters and more. The extendable lower links makes changing 3-point implements a lot simpler. For the ideal combination of power, functionality, and comfort, the XU5065PS delivers a lot for a lot less than you might expect.
Modern Stylish DesignThis compact 4WD is ergonomically designed and stylish with its distinctive blue color. |
|
Shibaura ISM Tier 4 EngineThe Shibaura ISM Tier 4 meets EPA’s most stringent emission standards while delivering rated horsepower quietly with low vibration. Easy Open One-Piece Hood - provides accessibility for easy maintenance. |
|
Large Fuel TankThe large 15.8 gallon capacity fuel tank provides long operation times. |
|
Synchro Shuttle TransmissionThe Synchro Shuttle Transmission makes changing direction easier than competitive non-shuttle gear models. Fully synchronized 12 forward /12 reverse gear transmission provides more operating speeds and easier, smoother shifting than others in its class for superior control, precision and safe operations for virtually any application. |
|
PTO SwitchesYou can select manual or independent PTO and turn on or off with a simple turn of switch. |
|
Simple SelectionsSelect your range with a simple move of the lever. |
|
3-point HitchWith Telescopic Lower Links Standard - category 1 with a hitch lift capacity up 1808lbs. This allows for easier attachment of a wide variety of implements. Drawbar Standard – increases the usefulness of the tractor without the additional optional cost. Extendable lower links-makes connecting implements easier. |
|
Ergonomically Designed3-Point Hitch Controls and Fender Mounted Joystick - easily accessible for maximum comfort and convenience. Position and Draft Control - increases ease of use across a wider variety of implements. Easy to reach fender mounted front end loader joystick. |
|
Adjustable Seat with Seat BeltDeluxe Adjustable Seat with Seat Belt - keeps you in a comfortable even during long operations. |
|
Standard Foldable ROPSStandard Foldable ROPS (Open Station Models) - allows storage in low clearance buildings or sheds. |
|
Flat PlatformFlat Platform – with rubber mat, maximizes space, improves operator comfort, and makes getting on/off tractor easier. |
|
Dash PanelFull Function Dash Panel - important functional data is available at glance for optimum performance and control. |
|
Rear Remotes2 Sets of Remotes and Detent Function Standard - adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options. |
|
7 Pin SocketStandard 7 Pin Electrical Socket - provides power for implements when needed. |
|
Choice of TiresYour Choice of Tires - choose industrial, Ag, or turf tires at no additional cost; subject to dealer inventory. |
|
Front End LoaderOptional Quick Attach(skid-steer) Front End Loader remove or attach in moments. With 2182 lbs. of lift capacity, it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class. |
|
Backhoe AttachmentOptional Quick Attach Backhoe - remove or attach in seconds. With 89” digging depth, 2,679 lbs. of digging force and 180° swing arc, it outperforms other in its class. |
Tractor Specs
ENGINE | |
---|---|
Manufacturer | Shibaura ISM |
Model | N4LDI-TA(Turbo) |
Gross - Horsepower | 65 |
Rated Engine Speed | 2600 |
Number of Cylinders | 4 |
Displacement-cu.in. | 135.2 |
POWER TRAIN | |
---|---|
Transmission Type | Power Shuttle |
Number Of Speeds | 16F/16R |
Max Traveling Speed, mph (km/h) | -- |
Brakes | Wet, Multi Disc |
HYDRAULIC SYSTEM | |
---|---|
Pump Type | Dual Gear Pump |
Max Total Flow gpm | 15.8 |
Category, 3 Point Hitch | 2 |
Hitch Lift Capacity, lb | 4079 |
No. of standard remote valves | 2 |
PTO | |
---|---|
Type | Independent |
Control | Electric/Hydro |
Mid (rpm)-Option | N/A |
Rear (rpm) | 540 |
Shaft Diameter in. (mm) | 1 3/8 (35) |
CAPACITIES | |
---|---|
Fuel Tank, U.S. gal | 15.8 |
DIMENSIONS | |
---|---|
Overall Length, in. with 3P | 141.5 |
Overall Width (with ag tires), in. | 67 |
Wheelbase, in. | 80.3 |
Height to Top of ROPS, in. | 102.9 |
Min. Ground Clearance, in | - |
STANDARD TIRES | |
---|---|
Turf Front | 36x13.5-15 |
Turf Rear | 16.9-24 |
Industrial Front | 10.5/80-18 |
Industrial Rear | 19.5L-24 |
Ag Front | 9.5-20 |
AG Rear | 16.9-24 |
WEIGHT | |
---|---|
Total Weight, lb | 4,674 |
