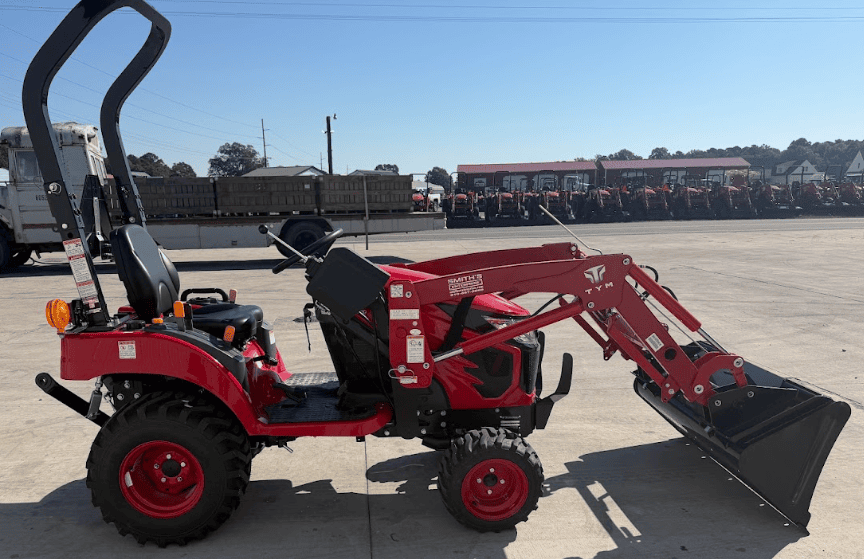

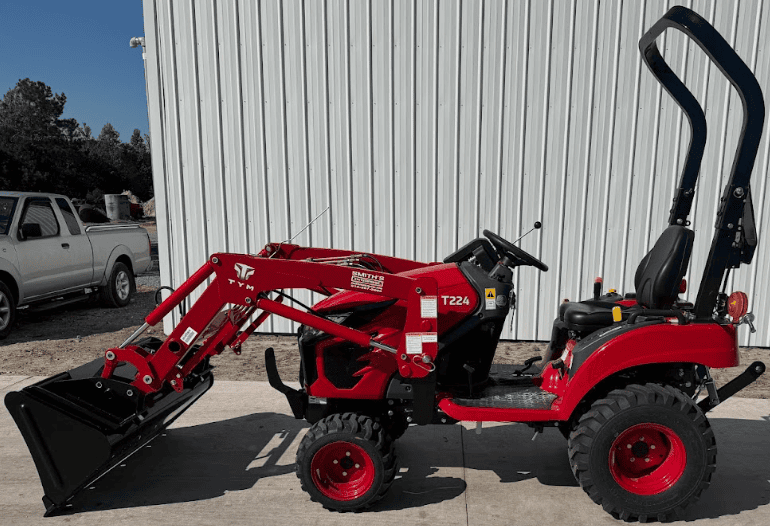

T224 (21.5 hp) Series 1, Sub-Compact Tractors

phone icon (910) 567-2680
Advertised Price $15,900

3 Units in Stock

A SUB-COMPACT TRACTOR DESIGNED FOR FULL-SIZED TASKS

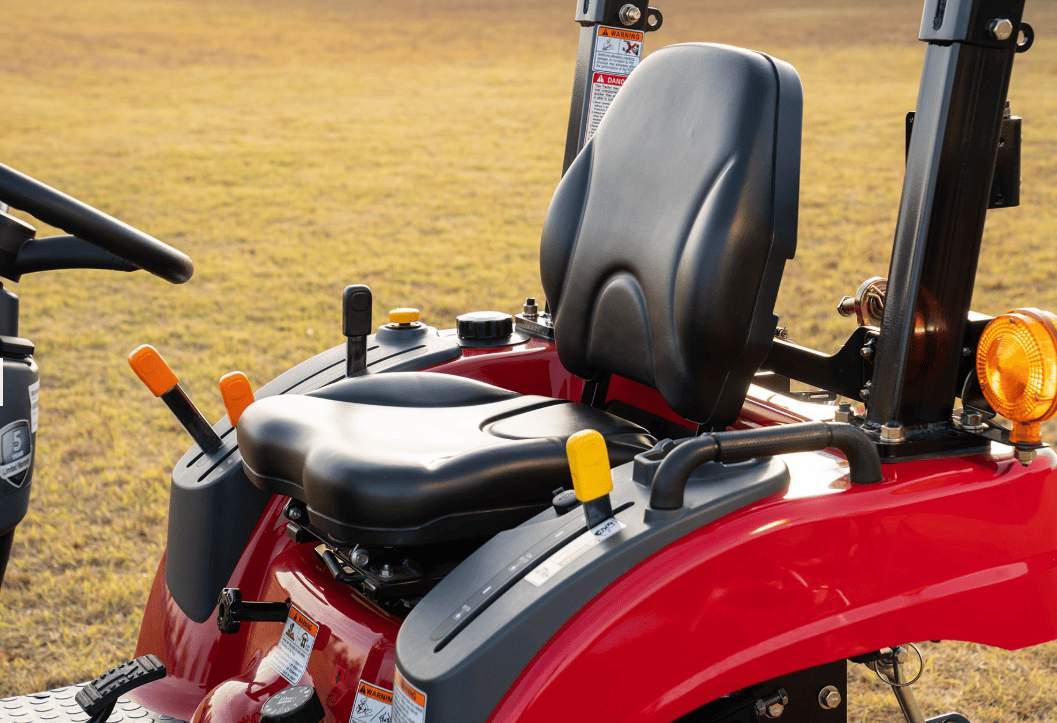

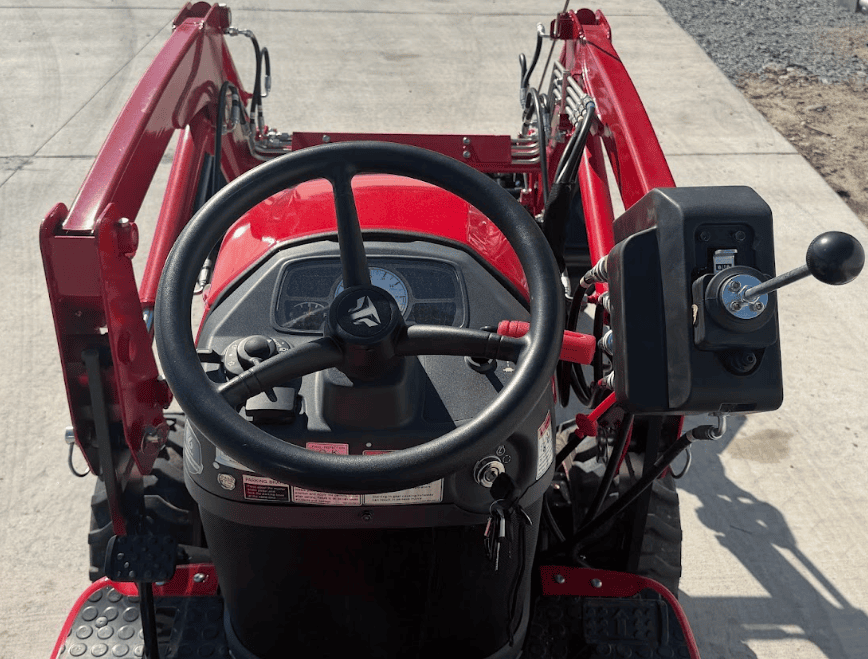

Designed to be nimble and functional, this TYM Series 1 tractor allows greater maneuverability and promotes effortless operations for novice and experienced tractor riders alike. Hydrostatic steering controls and throttle levers help control tractor direction and engine speed, while a dedicated PTO lever can be used to control implement direction and speed. Affordably priced, this tractor offers owners the potential for great lifetime value, performing reliably for nearly any task in and around private property.

MakeTYM
ModelT224
Year2026
MilesNew
EngineYANMAR

TYM T224 Tractor Specs

  • Engine: 21.5 hp Yanmar 3TNV74F 3-cylinder liquid-cooled diesel engine (60.6 cu. in. displacement)

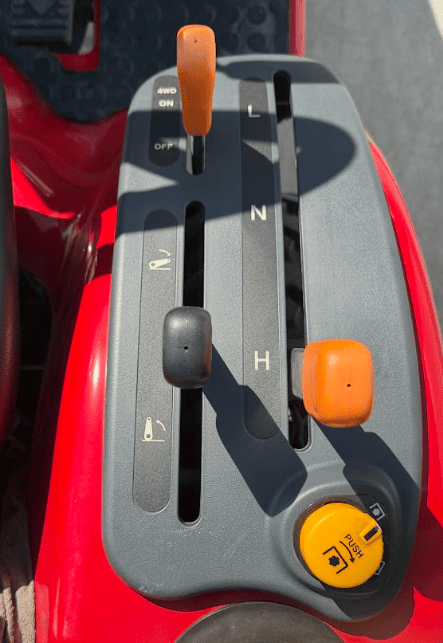

  • Transmission: 2-range hydrostatic transmission (HST) with dual pedals
  • Drive & Steering: 4-wheel drive (4WD) with power steering and wet disc brakes

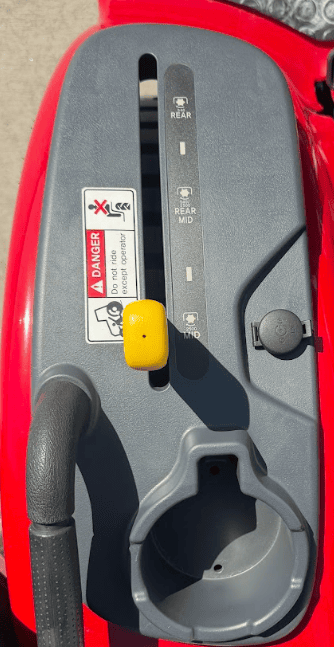

  • PTO: Independent rear 540 rpm and mid 2500 rpm

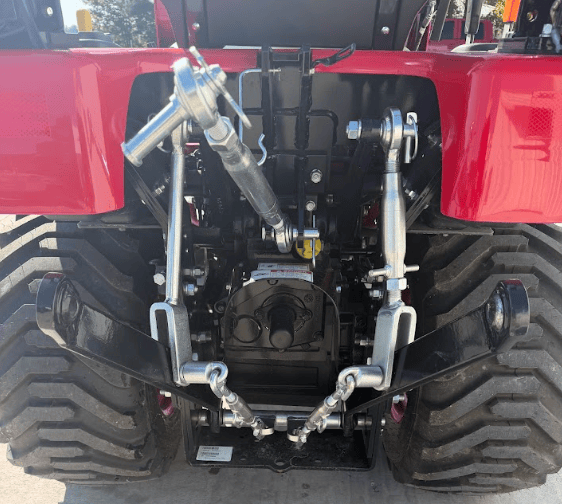

  • 3-Point Hitch: Category I with an 1,100 lb lift capacity
  • Hydraulics: Open center system with a total flow of 6.97 gpm (4.17 gpm implement, 2.11 gpm steering)

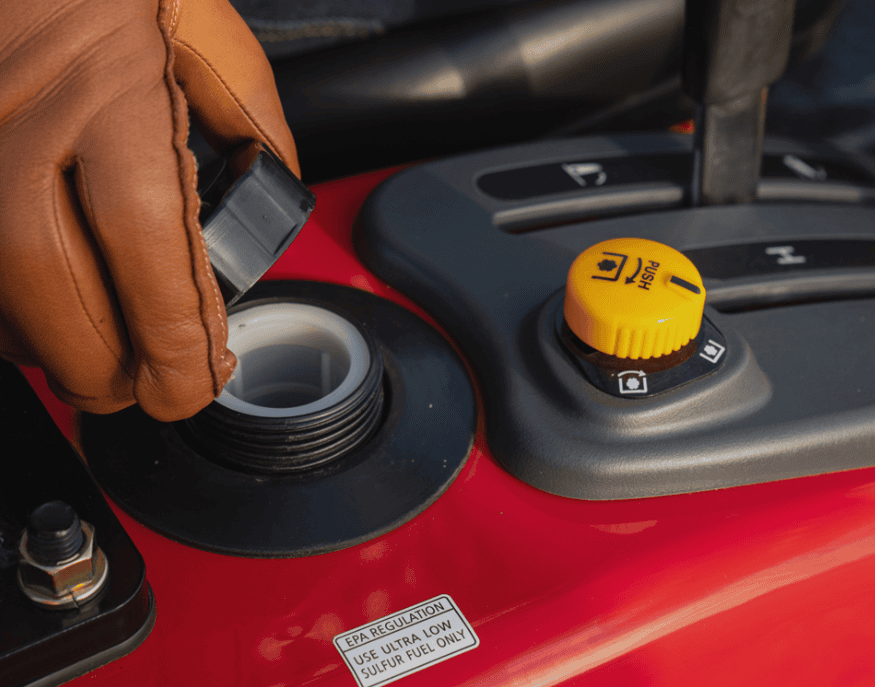

  • Fuel Capacity: 6.6 gallons (25 liters)
  • Dimensions & Weight: 94.2 in. length, 44.5 in. width, 53.1 in. wheelbase, 8.3 in. ground clearance, and 1,472 lb weight with ROPS [1, 2, 3, 4, 5]

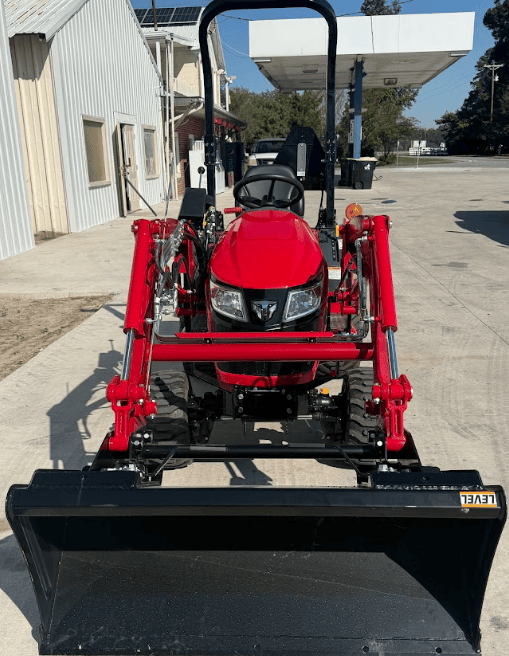

TYM TX22h Front-End Loader Specs

  • Standard Bucket Size: 48 inches
  • Max Lift Height (at pivot pin): 71.3 inches
  • Lift Capacity (at pivot pin): 617 lbs
  • Breakout Force: 1,235 lbs

To see the full specs on TYM’s Website – CLICK HERE
