TYM T130 (127hp) Series 6, Utility Tractors

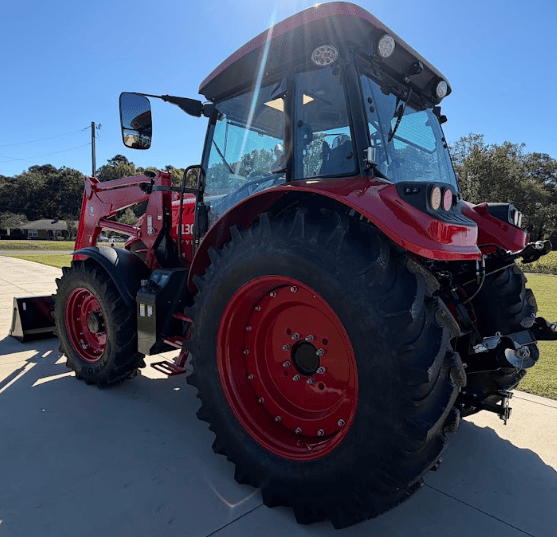

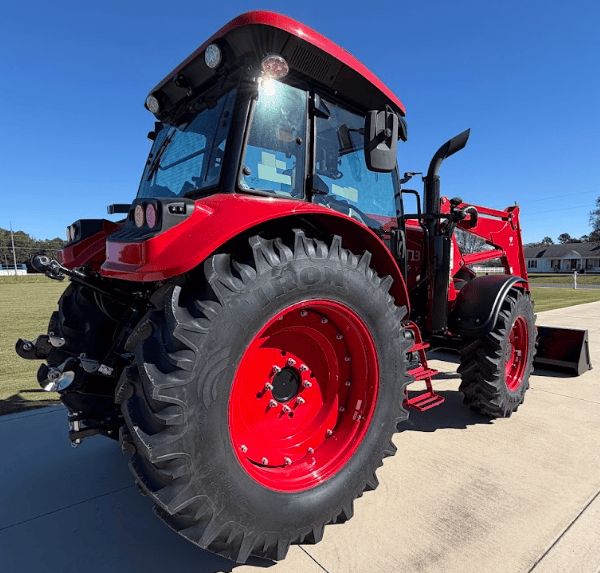

T130 Utility Tractor (click for T130 specs)

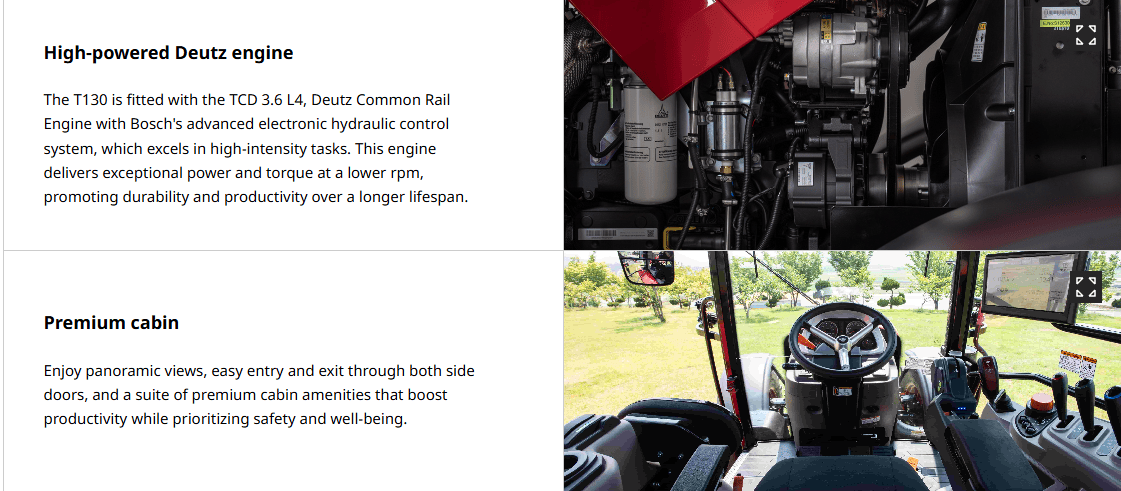

The T130 can perform high-intensity work reliably, powered by a Deutz Common Rail Engine and Bosch’s state-of-the-art electronic hydraulic control system. It is ideal for use in commercial-scale rice and crop farming and livestock management. Automatic PTO with rotation and elevation functions adapt to the height of attachments, keeping the tractor stable and enabling a smooth ride. In addition, the basic specifications are differentiated by applying a backlit LED emblem and T-VISION LED headlamp for enhanced aesthetics. The cabin is fully equipped with TYM’s premium operator features; remote engine start with a smart key, a smartphone wireless charger, and a heated and cooled cup holder

Key Engine & Drivetrain Specs

• Engine Manufacturer / Model: Deutz TCD 3.6 L4 Common Rail Engine (Deutz TCD3.6L4)
• Engine Power: 127 hp (approx. 129–130 PS)
• Rated Engine Speed: 2,200 rpm
• Displacement: 221 cu. in. (3,621.5 cc)
• Transmission: F36 × R36 with Creep (or 32-speed Power Shuttle depending on configuration)
• PTO (Rear): 540 / 540E / 1,000 rpm with a reversible shaft
• Fuel Tank Capacity: 50.2 gallons (190 L)

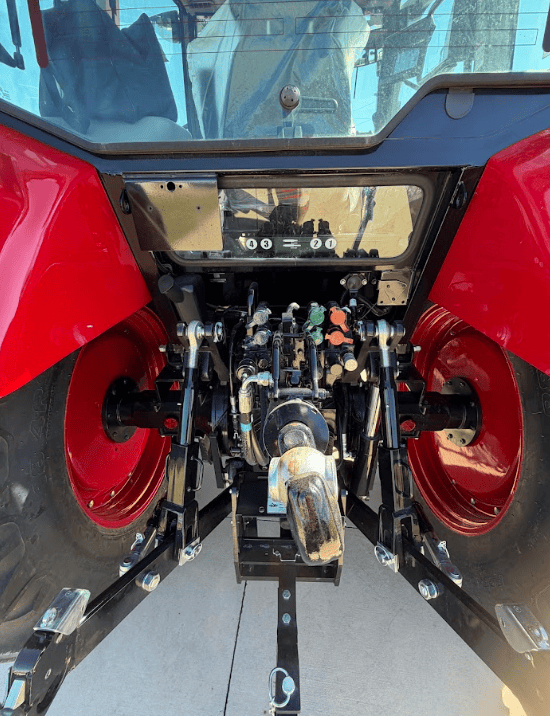

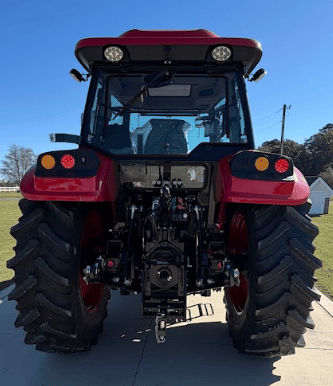

Hydraulics & 3-Point Hitch

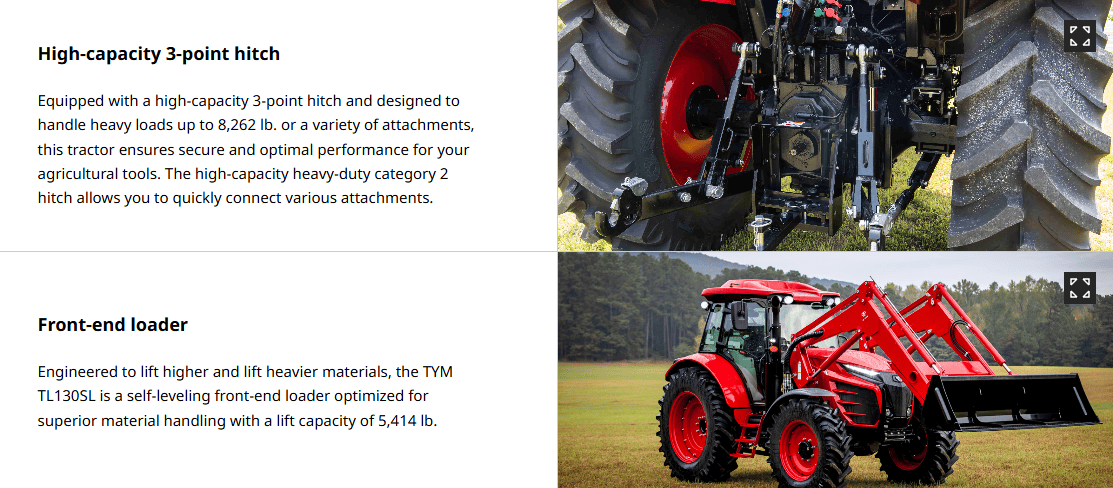

• Hitch Category: Category 2 (3-point hitch)
• Hitch Lift Capacity: 8,262 lb (3,747 kg / 3,747 kgf)
• Hitch Lift Capacity at 24 inches behind link ends: 8,014 lb
• Total Hydraulic Flow: ~21.4 to 29.2 gpm (depending on setup)
• Remote Valves: 6 standard remote valves (triple rear remotes)

Dimensions & Weight

• Overall Length (with 3-point hitch): 176.8 in. (4,490.7 mm)
• Overall Width: 92.9 in. (2,359.7 mm)
• Wheelbase: 102 in. (2,938.8 mm)
• Height to Top of Cabin: 115.7 in. (2,940 mm)
• Minimum Ground Clearance: 16.1 in. (410 mm)
• Weight with Cab: 10,020 lb (4,545 kg)

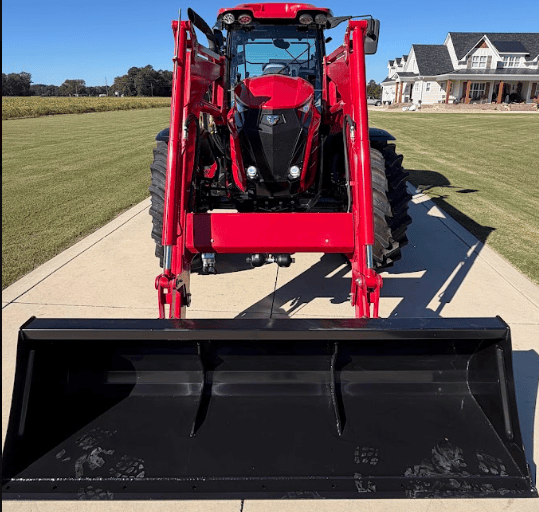

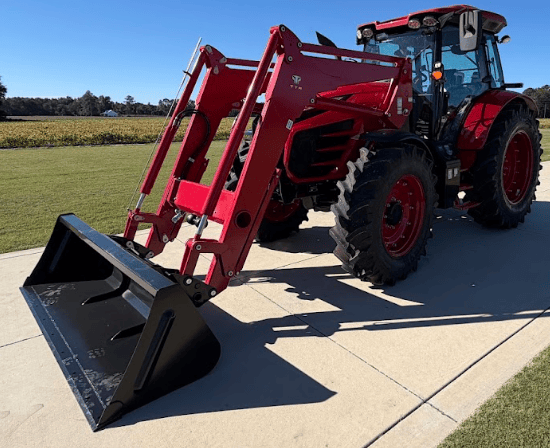

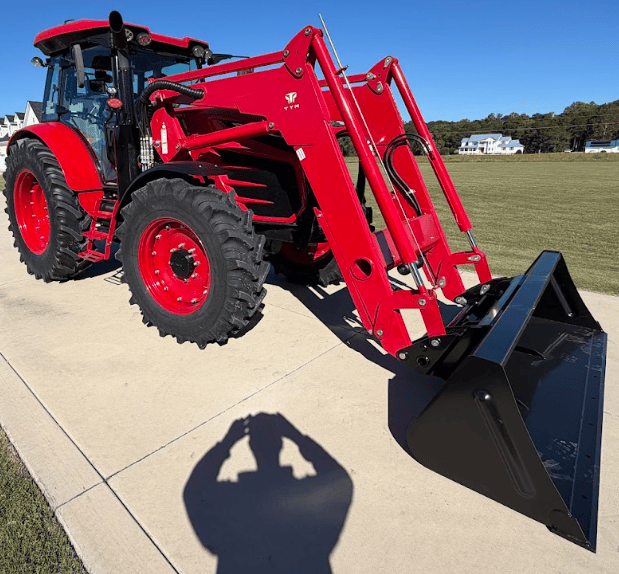

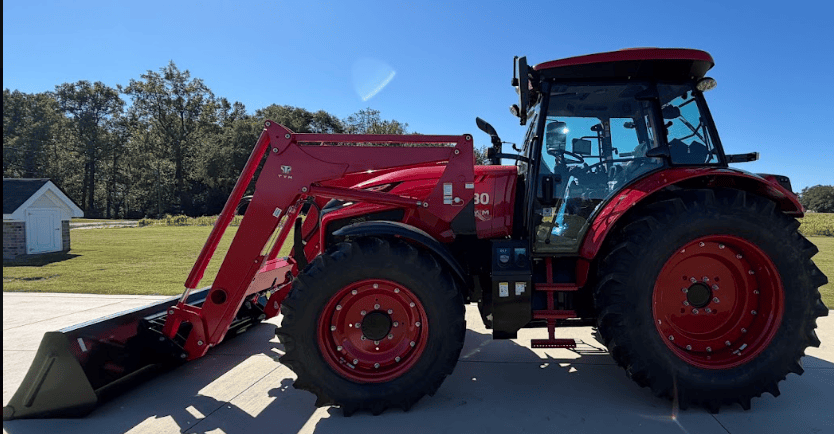

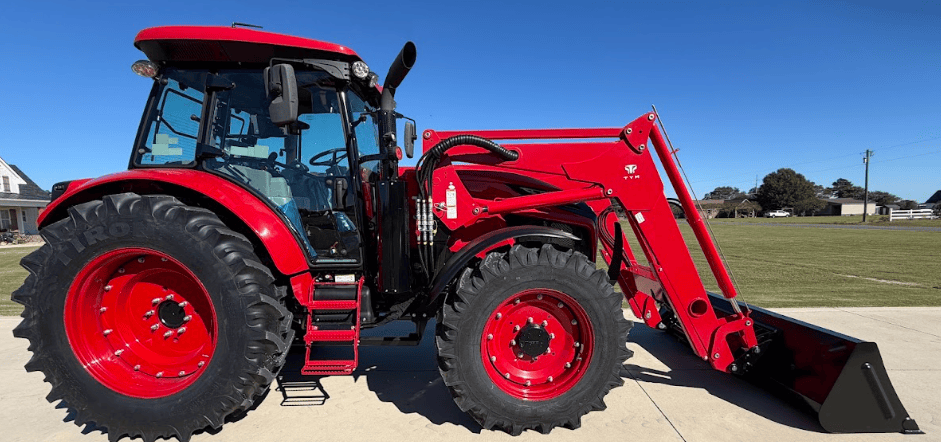

Front-End Loader (TYM TL130SL)

• Type: Self-leveling front-end loader
• Max Lift Capacity: 5,414 – 5,415 lb
• Max Lift Height: 162 in.

Cab & Technology

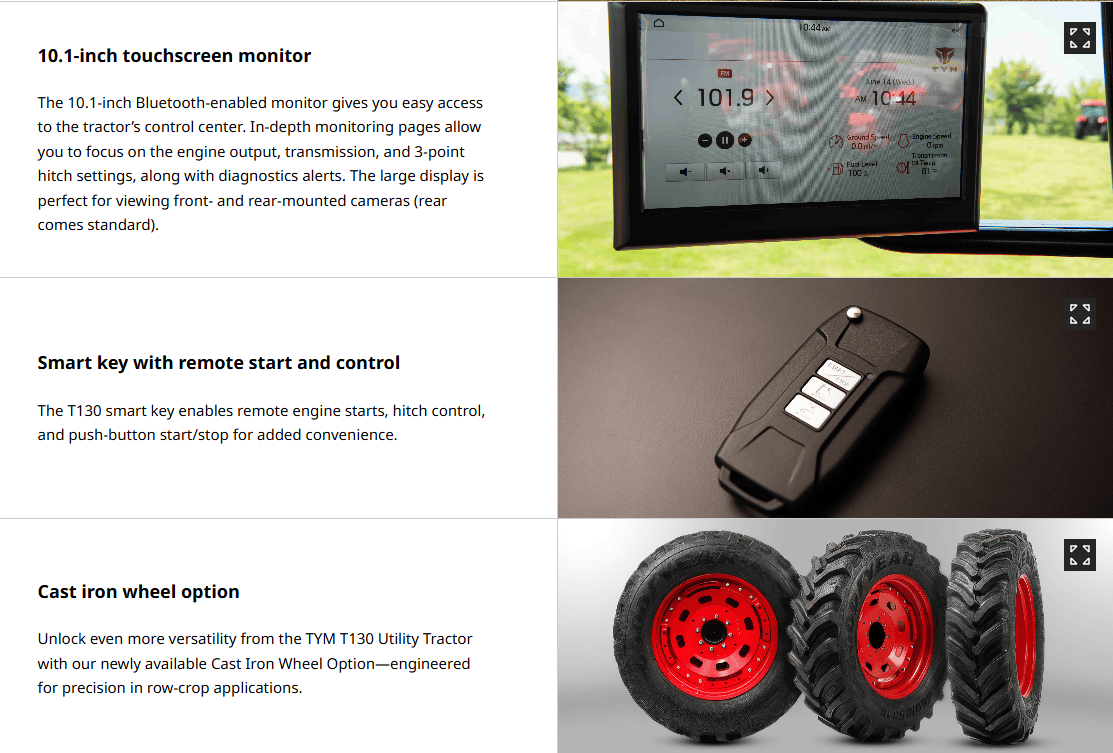

• Display / Control Center: 10.1-inch Bluetooth-enabled touchscreen monitor with rear-view camera feed

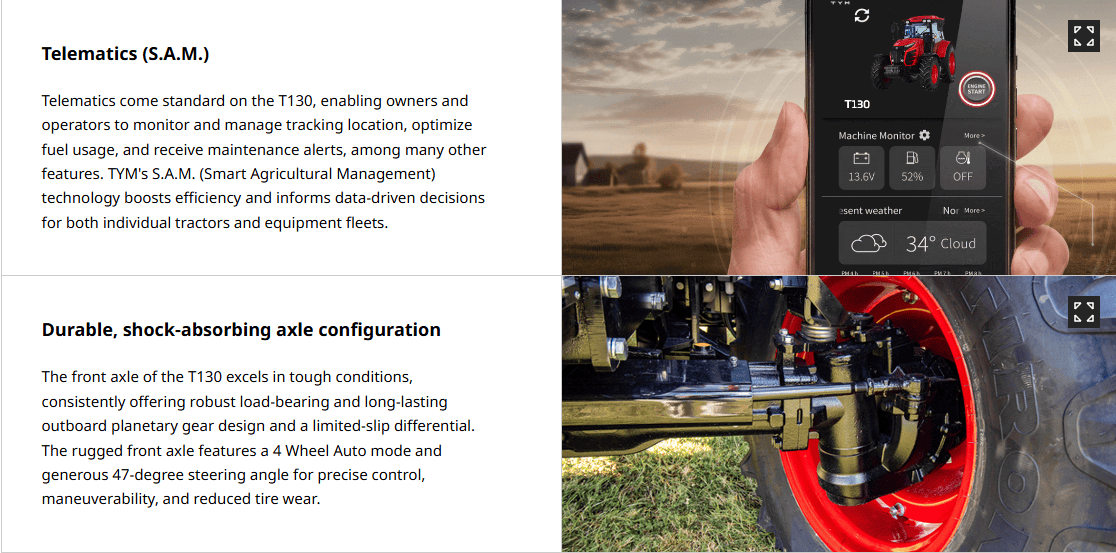

• Telematics: Standard S.A.M. (Smart Agricultural Management) system
• Comfort Features: Air-ride full suspension seat, HVAC cabin with panoramic views, buddy/auxiliary seat, wireless smartphone charger, and heated/cooled cup holder
• Convenience: Smart key with remote start and remote hitch control, push-button start/stop
