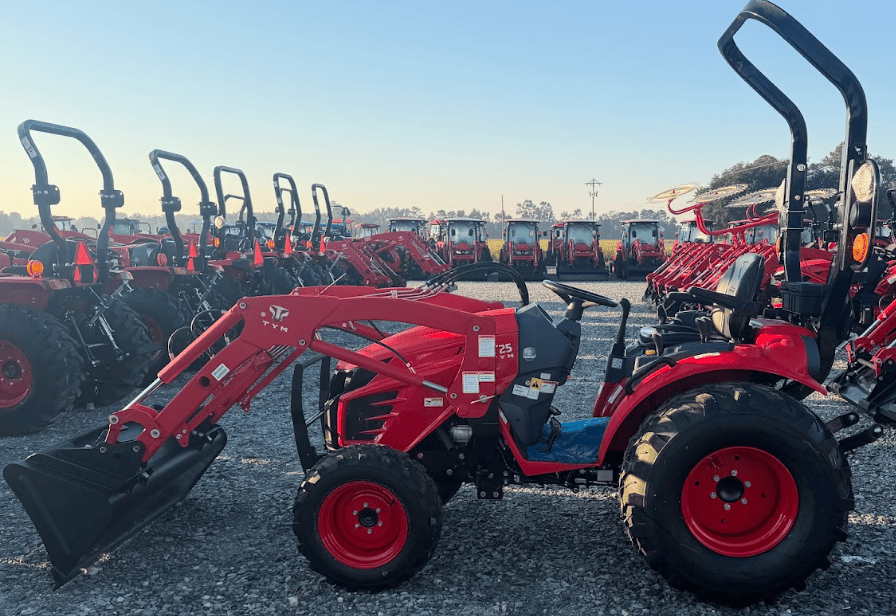

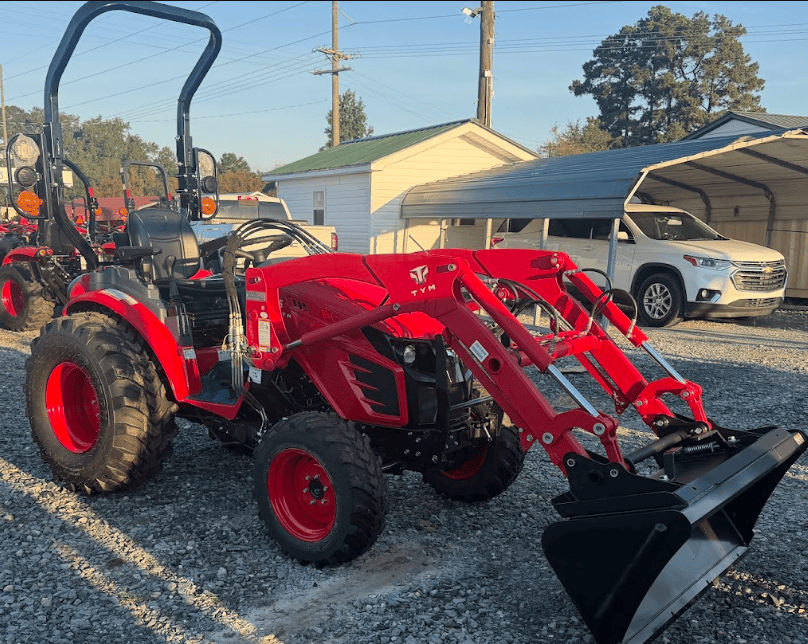

TYM – T25 (24.7 hp) Series 2, Sub-Compact Tractors
4 Units in Stock
A SUB-COMPACT TRACTOR ENGINEERED FOR PRODUCTIVITY INSIDE AND OUT
Optimized height and heavier structure come together in the highly durable T25, equipped one of the biggest lift capabilities among sub-compacts. Higher traveling speeds enable greater ground coverage, powered by an efficient engine that generates more output at lower rpms. The engine is also Tier 4 certified, producing minimized emissions and promoting more efficient fuel burn. With features to promote operator productivity like the brighter LED console and additional implement functionality with a third function valve, the T25 enables productivity and versatility to every job. Expect to tackle any outdoor challenge and gain a lifetime of benefits with this top-of-the-line TYM sub-compact.
TYM T25 Tractor Specs
Engine & Powertrain:

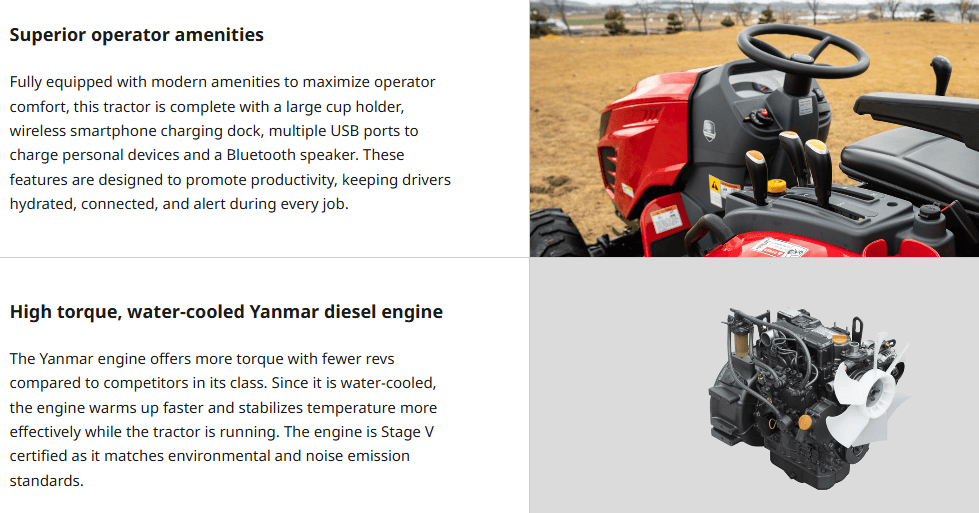

Yanmar 3TNV80F 3-cylinder water-cooled diesel
Gross Horsepower: 24.7 hp (18.4 kW) at 3,000 rpm
PTO Horsepower: 18.3 hp (13.6 kW)
Displacement: 77.3 cu. in. (1,267 cc)
Transmission: 2-range hydrostatic transmission (HST)
Drive: 4-wheel drive (4WD)
Emissions: Tier 4 certified (no DPF or DEF required)
Capacities & Hydraulics

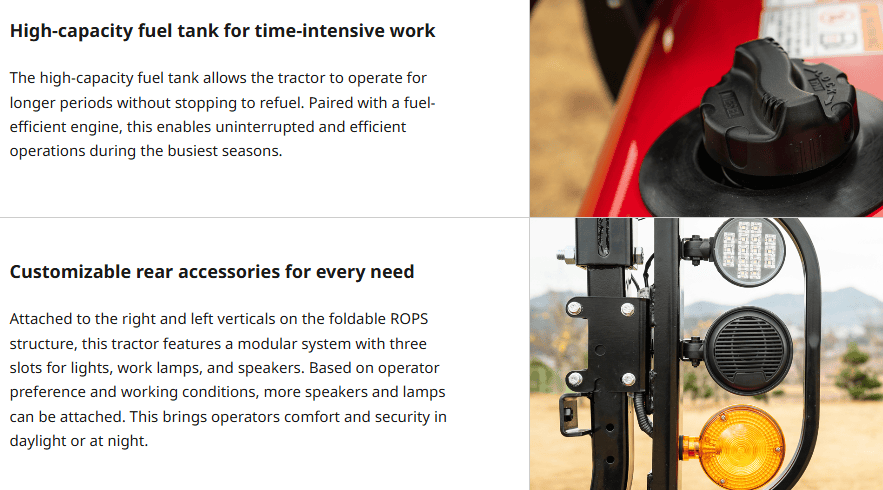

Fuel Tank Capacity: 6.6 gal (25 L)

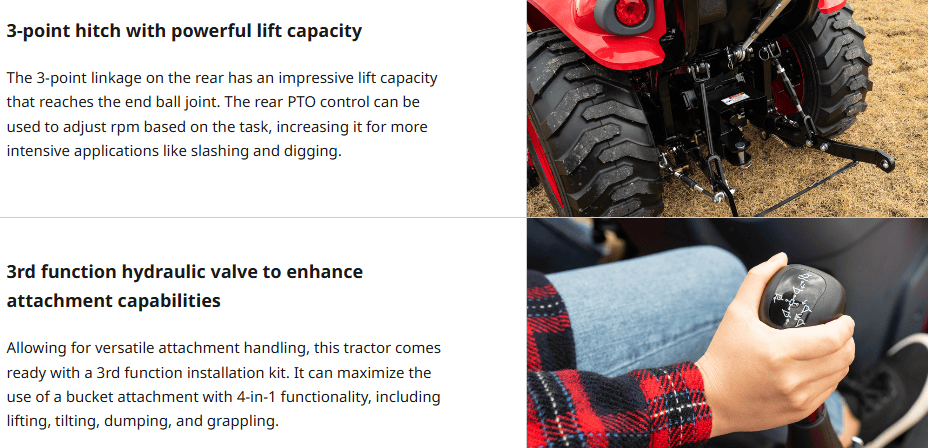

3-Point Hitch Lift Capacity: 1,551.2 lb (703.6 kg) at hitch ends / 1,102 lb at 24 inches behind
Rear PTO: Independent 540 rpm
Hydraulic System: Open-center system with ~6.95 gpm total flow
Dimensions & Weight
Overall Length: 102.8 in. (2,611 mm)
Overall Width: 50 in. (1,270 mm)
Wheelbase: 61 in. (1,549 mm)
Height to ROPS: 91.3 in. (2,319 mm)
Ground Clearance: 10.2 in. (259 mm)
Weight (ROPS): ~2,046 lb (928 kg)

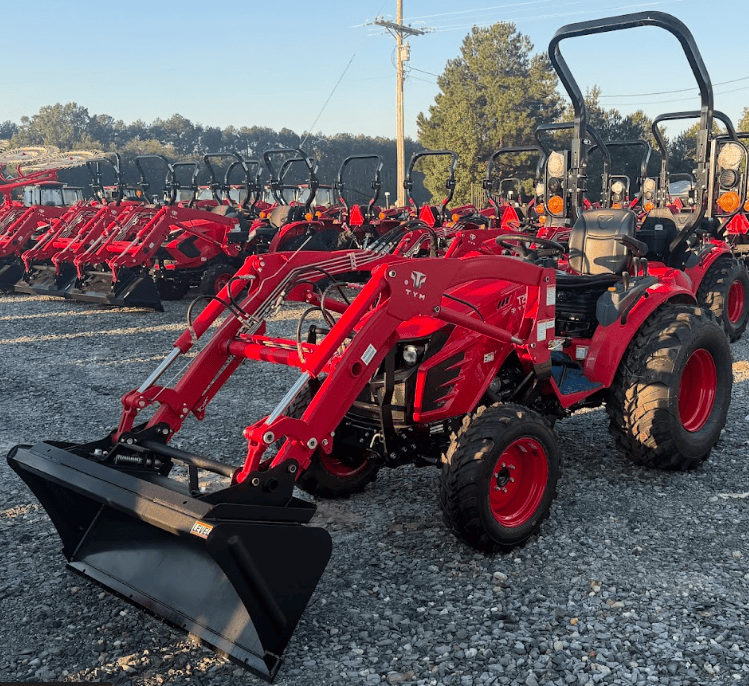

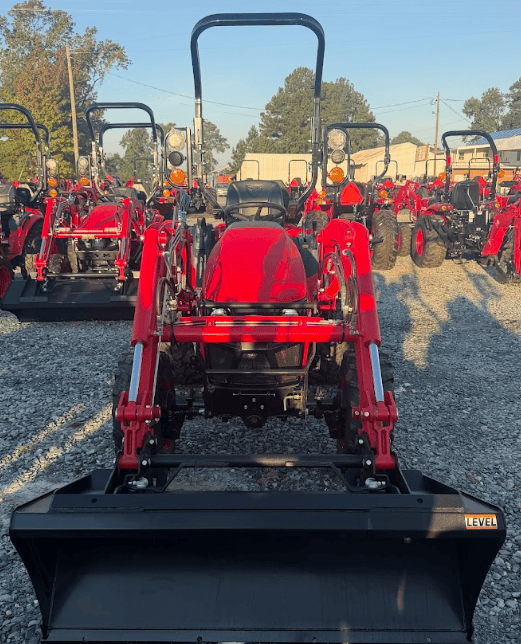

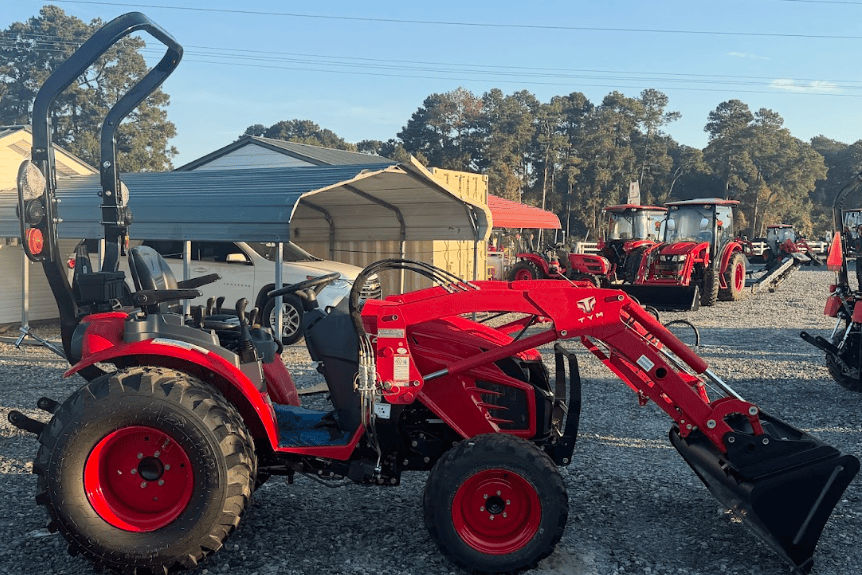

TYM TL25T Front-End Loader Specs
Lift height 2215 mm | 87.2 in.
Lift capacity at pivot point (max. height) 626 kgf | 1380 lb
Bucket capacity 0.19 cu. m | 6.7 cu. ft
To see the full specs on TYM’s Website – CLICK HERE
