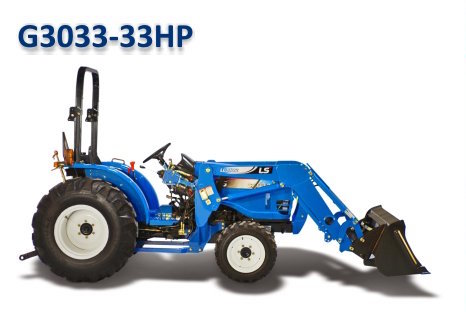

G 3033

When you're looking for a dependable compact tractor at a great value you don't need to give up the functional features that make your job easier. With more operating speeds, a shuttle shift, more front end loader lift capacity, and independent PTO, the G3033 gives you a lot more than a basic tractor, but at a basic tractor price.

The 12 forward x 12 reverse synchro shuttle transmission not only makes changing direction easier than non-shuttle competitors, but the additional operating speeds allow you to more precisely select the speed you need for all of your various applications. And with more front end loader lift capacity than the competition, you can carry heavier loads and get your work done more efficiently. The G3033's independent PTO allows you to engage and disengage the PTO without having to use the foot clutch or coming to a stop like with a live or transmission PTO. All this is why the G3033 enables you to work faster, more efficiently and with less operator fatigue.

6_12_georgia

Modern Stylish Design

This small chassis compact 4WD is ergonomically designed and stylish with its distinctive blue color. Mechanical front wheel assist 4WD- greatly enhances traction.
7_16_ta

Mitsubishi Tier 4 Engine

The Mitsubishi Tier 4 fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration. Easy Open One-Piece Hood - provides accessibility for easy maintenance.

Large Fuel Tank

The large 7.4 gallon capacity fuel tank provides long operation times.

PTO On/Off Switch

Turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.

Synchro Shuttle Transmission

Makes changing direction easier than competitive non-shuttle gear models. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.

Simple Selections

Select your gear range or 2WD/4WD with the simple move of the levers.

Hydrostatic Power Steering

This makes turning easier, improves control and reduces fatigue.

3-Point Hitch

Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements. Drawbar Standard - increases the usefulness of the tractor without the additional optional cost.

Ergonomically Designed 3-Point Hitch Controls

Easily accessible for maximum comfort and convenience.

Adjustable Seat with Seat Belt

Keeps you in a comfortable and safe position for maximum control.

More Leg Room with Side Mounted Gear Lever

This allows for storage in low clearance buildings or sheds.

Your Choice of Tires

You can choose industrial or turf tires at no additional cost; subject to dealer inventory.

Front End Loader

Optional Quick Attach, Skid Steer Compatible Front End Loader - Remove or attach in moments. With 1,600 lbs of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.

Backhoe Attachment

Optional Quick Attach Backhoe - remove or attach in seconds. Available with 9”, 12” or 16” bucket width.

Tractor Specs

ENGINE
Manufacturer Mitsubishi
Model S3L2
Gross - Horsepower 27
Rated Engine Speed 2700
Number of Cylinders 3
Displacement-cu.in. 80.4
POWER TRAIN
Transmission Type Hydrostatic Drive
Number Of Speeds 2 Ranges
Power Steering Hydrostatic
Brakes Wet Multi Disc
HYDRAULIC SYSTEM
Pump Type Implement Pump
Max Total Flow gpm 8.6
Category, 3 Point Hitch 1
Hitch Lift Capacity, lb 1,433
Lift Control Type Manual Position
PTO
Type Independent
Rear (rpm) 540
Mid (rpm) 2000
CAPACITIES
Fuel Tank, U.S. gal 6.6
DIMENSIONS
Overall Length, in. with 3P 103"
Min. Overall Width, in. 44.9"
Wheelbase, in. 59"
Height to Top of ROPS, in. 85"
STANDARD TIRES
Industrial Front 23 x 8.5 -12
Industrial Rear 33 x 12 - 16.5
Turf Front 23 x 8.5 - 12
Turf Rear 33 x 12 - 16.5
WEIGHT
Total Weight, lb 1,587
