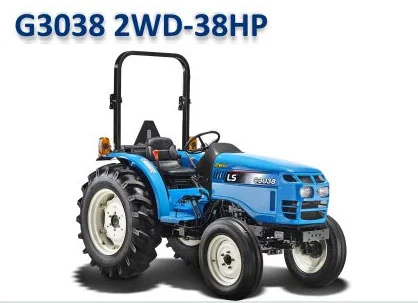

G 3038 2WD

Your soil is reasonably firm, your land is mostly flat, and you need a reliable, high quality compact tractor to mow, shred pastures, garden, spray, and on occasion perform front end loader applications. So why pay more for 4-wheel drive when you don't need it? This is why we're proud to present the G3038 2WD, with more operating speeds, flat operator platform, independent PTO and synchro shuttle with a higher lift capacity loader. The G3038 2WD delivers superior performance and greater value than the competition.

6_12_georgia

Modern Stylish Design

This small chassis compact 4WD is ergonomically designed and stylish with its distinctive blue color. Mechanical front wheel assist 4WD- greatly enhances traction.
7_16_ta

Mitsubishi Tier 4 Engine

The Mitsubishi Tier 4 fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration. Easy Open One-Piece Hood - provides accessibility for easy maintenance.

Large Fuel Tank

The large 7.4 gallon capacity fuel tank provides long operation times.

PTO On/Off Switch

Turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.

Synchro Shuttle Transmission

Makes changing direction easier than competitive non-shuttle gear models. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.

Simple Selections

Select your gear range or 2WD/4WD with the simple move of the levers.

Hydrostatic Power Steering

This makes turning easier, improves control and reduces fatigue.

3-Point Hitch

Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements. Drawbar Standard - increases the usefulness of the tractor without the additional optional cost.

Ergonomically Designed 3-Point Hitch Controls

Easily accessible for maximum comfort and convenience.

Adjustable Seat with Seat Belt

Keeps you in a comfortable and safe position for maximum control.

More Leg Room with Side Mounted Gear Lever

This allows for storage in low clearance buildings or sheds.

Your Choice of Tires

You can choose industrial or turf tires at no additional cost; subject to dealer inventory.

Front End Loader

Optional Quick Attach, Skid Steer Compatible Front End Loader - Remove or attach in moments. With 1,600 lbs of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.

Backhoe Attachment

Optional Quick Attach Backhoe - remove or attach in seconds. With 76" digging depth 2,817 lbs. of digging force and 180degree swing arc, it outperforms other in its class.

Tractor Specs

ENGINE
Manufacturer Mitsubishi
Model L3AL
Gross - Horsepower 38
Rated Engine Speed 2600
Number of Cylinders 3
Displacement-cu.in. 122.2
POWER TRAIN
Transmission Type Syncro Shuttle
Number Of Speeds 12F / 12R
Brakes Wet Multi Disc
HYDRAULIC SYSTEM
Pump Type Dual Gear Pump
Max Total Flow gpm 11.9
Category, 3 Point Hitch 1
Hitch Lift Capacity, lb 1808
PTO
Type Independent
Control Electric/Hydro
Mid (rpm)-Option N/A
Rear (rpm) 540
Shaft Diameter in. (mm) 1 3/8 (35)
CAPACITIES
Fuel Tank, U.S. gal 7.4
DIMENSIONS
Overall Length, in. with 3P 117.6
Overall Width, in. 41
Wheelbase, in. 65.9
Height to Top of ROPS, in. 90.2
Min. Ground Clearance, in -
STANDARD TIRES
Ag Front 7 - 14
Ag Rear 11.2 - 24
WEIGHT
Total Weight, lb 2712
