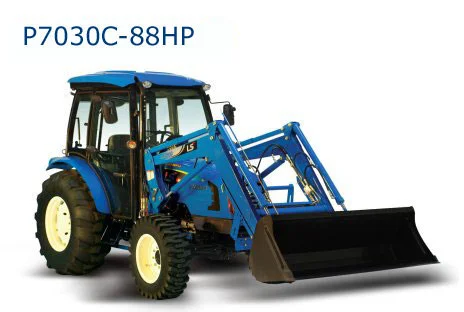

P 7030C
When you need more horsepower to use larger implements and work in more demanding conditions, the P7030C is a better choice. With 22% more engine and PTO horsepower than the P7010, the P7030C delivers the additional power you need. You get 20 forward and 20 reverse fully synchronized shuttle shift operating speeds, standard creeper, selectable independent or manual PTO, 540/750/1000 RPM rear PTO speeds, shiftable ground speed PTO, 3 rear remote valves, and extendable lower links. The quick attach, self leveling loader not only has more lift capacity at 3,500 lbs than competitive models, it comes standard with grill guard, skid steer coupler and bucket. And regardless of the weather outside, you will be incredibly comfortable in the spacious, climate controlled cab. Even the front and rear wash/wipers are standard, as is the deluxe stereo with CD player.
Modern Stylish DesignThis 4WD utility tractor is ergonomically designed and stylish with its distinctive blue color. |
|
P-EngineIveco Tier 3 Engine - 4 cylinder low vibration, fuel efficient yet powerful. Easy Open One-Piece Hood - provides accessibility for easy maintenance. |
|
Large Fuel TankThe large 26.4 gallon capacity fuel tank provides long operation times. |
|
Synchro Shuttle TransmissionMakes changing direction easier than competitive non-shuttle gear models. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application. |
|
Simple SelectionsActivate 4WD, differential lock, PTO auto/manual mode or Work/Drive mode with the simple push of a button. |
|
P-3-Point Hitch ControlsErgonomically Designed 3-Point Hitch Controls and Fender Mounted Joystick - easily accessible for maximum comfort and convenience. Position and Draft Control with Automatic Lift - increases ease of use across a wider variety of implements. |
|
Deluxe Adjustable Seat with Retractable Seat BeltKeeps you in a comfortable even during long operations. |
|
Standard Foldable ROPSAllows storage in low clearance buildings or sheds. |
|
Flat PlatformWith rubber mat and side mounted gear lever, maximizes space, improves operator comfort, and makes getting on/off tractor easier. |
|
Full Functional Dash PanelImportant functional data is available at glance for optimum performance and control. |
|
3 Sets of Remotes StandardAdds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options. Easy to reach fender mounted front end loader joystick. |
|
Rear Work LightNever be in the dark with this hands-free functional feature that allows light to be directed wherever you need it. |
|
Rear Work LightNever be in the dark with this hands-free functional feature that |
|
Standard 7 Pin Electrical SocketProvides power for implements when needed. |
|
Optional Quick Attach, Self-Leveling Front End Loader with Skid Steer Compatible BucketEasy to take off or attach loader and easily change loader attachments. With 3,500 lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class. |
Tractor Specs
ENGINE | |
---|---|
Manufacturer | Iveco |
Model | FPT F5C |
Gross - Horsepower | 88 |
Rated Engine Speed | 2300 |
Number of Cylinders | 4 |
Displacement-cu.in. | 195.3 |
POWER TRAIN | |
---|---|
Transmission Type | Synchro Shuttle |
Number Of Speeds | 20 F&R |
Power Steering | Hydrostatic |
Brakes | Wet Multi Disc |
HYDRAULIC SYSTEM | |
---|---|
Pump Type | Implement Pump |
Max Total Flow gpm | 12.0 |
Category, 3 Point Hitch | 2 |
Hitch Lift Capacity, lb | 6,173 |
Lift Control Type | Position / Draft |
PTO | |
---|---|
Type | Independent/Manual |
Rear (rpm) | 540/750/1000 |
Function | Shiftable ground speed |
CAPACITIES | |
---|---|
Fuel Tank, U.S. gal | 26.4 |
DIMENSIONS | |
---|---|
Overall Length, in. with 3P | 157.1" |
Min. Overall Width, in. | 79.5" |
Wheelbase, in. | 86.6" |
Height to Top of Cab, in. | 102.3" |
STANDARD TIRES | |
---|---|
AG Front | 12.4 - 24 |
AG Rear | 18.3 - 30 |
WEIGHT | |
---|---|
Total Weight, lb | 6,724 |
