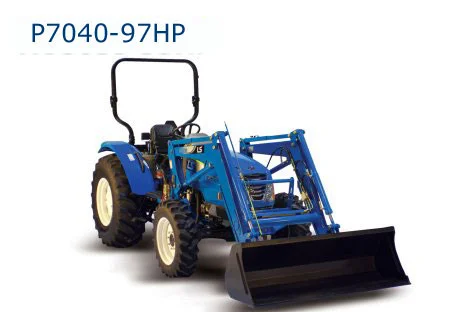

P 7040

When you need maximum horsepower in a heavy duty utility tractor but need to operate under low hanging branches or in areas with low clearances, the P7040 is the model for you. This open station tractor comes standard with foldable ROPS to provide the clearance when you need it.
With 97 engine horsepower and 85 for the PTO, you'll have the power to use larger implements to make your income producing work as efficient as possible. With the fully synchronized 20 forward and 20 reverse shuttle shift and creeper, you can precisely control your operating speed. Select independent or manual PTO, 540/750/1000 RPM rear PTO speeds and shiftable ground speed PTO to best match your operational needs. The P7040 also comes standard with 3 rear remote valves, and extendable lower links. The quick attach, self leveling loader not only has more lift capacity at 3,500 lbs. than competitive models, it comes standard with grill guard, skid steer coupler and bucket. Maximum horsepower combined with a long list of standard functional features makes the P7040 as easy to use as it is on your wallet.

R-stylish-design

Modern Stylish Design

This 4WD utility tractor is ergonomically designed and stylish with its distinctive blue color.
7_16_ta

P-Engine

Iveco Tier 3 Engine - 4 cylinder low vibration, fuel efficient yet powerful. Easy Open One-Piece Hood - provides accessibility for easy maintenance.

Large Fuel Tank

The large 26.4 gallon capacity fuel tank provides long operation times.

Synchro Shuttle Transmission

Makes changing direction easier than competitive non-shuttle gear models. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.

Simple Selections

Activate 4WD, differential lock, PTO auto/manual mode or Work/Drive mode with the simple push of a button.

P-3-Point Hitch Controls

Ergonomically Designed 3-Point Hitch Controls and Fender Mounted Joystick - easily accessible for maximum comfort and convenience. Position and Draft Control with Automatic Lift - increases ease of use across a wider variety of implements.

Deluxe Adjustable Seat with Retractable Seat Belt

Keeps you in a comfortable even during long operations.

Standard Foldable ROPS

Allows storage in low clearance buildings or sheds.

Flat Platform

With rubber mat and side mounted gear lever, maximizes space, improves operator comfort, and makes getting on/off tractor easier.

Full Functional Dash Panel

Important functional data is available at glance for optimum performance and control.

3 Sets of Remotes Standard

Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options. Easy to reach fender mounted front end loader joystick.

Rear Work Light

Never be in the dark with this hands-free functional feature that allows light to be directed wherever you need it.

Rear Work Light

Never be in the dark with this hands-free functional feature that

Standard 7 Pin Electrical Socket

Provides power for implements when needed.

Optional Quick Attach, Self-Leveling Front End Loader with Skid Steer Compatible Bucket

Easy to take off or attach loader and easily change loader attachments. With 3,500 lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.

Tractor Specs

ENGINE
Manufacturer Iveco
Model FPT F5C
Gross - Horsepower 97
Rated Engine Speed 2300
Number of Cylinders 4
Displacement-cu.in. 273.4
POWER TRAIN
Transmission Type Synchro shuttle
Number Of Speeds 20 F & 20 R
Power Steering Hydrostatic
Brakes Wet Multi Disc
HYDRAULIC SYSTEM
Pump Type Implement Pump
Max Total Flow gpm 15.9
Category, 3 Point Hitch 2
Hitch Lift Capacity, lb 6,173
Lift Control Type Position / Draft
PTO
Type Independent/Manual
Rear (rpm) 540/750/1000
Function Shiftable ground speed
CAPACITIES
Fuel Tank, U.S. gal 26.4
DIMENSIONS
Overall Length, in. with 3P 160.5"
Min. Overall Width, in. 78.7"
Wheelbase, in. 90"
Height to Top of ROLPS in. 104.8"
STANDARD TIRES
AG Front 12.4 - 24
AG Rear 18.3 - 30
WEIGHT
Total Weight, lb 6,600
