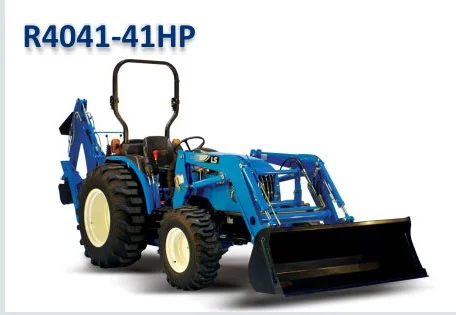

R 4041

The only thing that works as hard as you do is your tractor. For your heavy-duty projects, you need more horsepower, higher lift capacities, maneuverability in tight spaces, versatility and, of course, comfort. The R4041 delivers on all fronts with fully synchronized gears and shuttle shift, more operating speeds, more front end loader lift capacity, selectable independent or manual PTO, 2 rear remote valves, and extendable lower links. These features help you get real work done and are either unavailable or come as expensive options on competitive models. Don't settle for less when you can get a fully featured, high performance 4WD compact tractor for a lot less.

The versatile fully synchronized 16 forward and 16 reverse gears allow you to select the operating speed perfectly suited for your operation, change gears without stopping and change direction with the easy to use shuttle lever. Our loader is quick attach, skid steer compatible, comes standard with a grill guard and can carry heavier loads than competitive models. Easily select between independent or manual PTO with the turn of a switch. Quickly and easily attach hydraulically operated implements like rakes, backhoes, wood splitters, grapples with the standard two sets of rear remote valves. And to top it off, the extendable lower links make it a breeze to change 3-point implements. All this makes the R4041 an ideal combination of power, functionality, versatility and comfort for a lot less than you might expect.


R-stylish-design

Modern Stylish Design

This small chassis compact 4WD is ergonomically designed and stylish with its distinctive blue color.

7_16_ta

Mitsubishi Tier 4 Engine

The Mitsubishi Tier 4 fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration. Easy Open One-Piece Hood - provides accessibility for easy maintenance.

Large Fuel Tank

The large 9.5 gallon capacity fuel tank provides long operation times.

Synchro Shuttle Transmission

Makes changing direction easier than competitive non-shuttle gear models. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.

PTO On/Off Switch

Turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.

Simple Selections

Select your gear range or 2WD/4WD with the simple move of the levers.

3-Point Hitch

Category 1 with a hitch lift capacity of 1809 lbs. allows usage of a wide variety of implements. Drawbar Standard - increases the usefulness of the tractor without the additional optional cost. Extendable lower links-makes connecting implements easier.

Ergonomically Designed 3-point Hitch Controls

Easily accessible for maximum comfort and convenience.

Adjustable Seat with Seat Belt

Keeps you in a comfortable and safe position for maximum control.

Standard Foldable ROPS

Allows storage in low clearance buildings or sheds.

Flat Platform

Maximizes space and makes getting on and off tractor easier.

2 Sets of Remotes Standard

Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.

Rear Work Light

Never be in the dark with this hands-free functional feature that

Greater Steering Angle

Improves handling with tighter turning radius. Hydrostatic Power Steering - makes turning easier, improves control and reduces fatigue. Comfortable, easy to reach fender mounted front end loader joystick.

Your Choice of Tires

You can choose industrial or turf tires at no additional cost; subject to dealer inventory.

Front End Loader

Optional Quick Attach, Skid Steer Compatible Front End Loader - remove or attach in seconds. With 2250 for R3039 models lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.

Backhoe

Optional Quick Attach Backhoe - remove or attach in seconds. With 89" digging depth, 2,679 lbs. of digging force and 180degree swing arc, it outperforms other in its class.

2000 RPM Mid PTO

Optional 2000 RPM Mid PTO


Tractor Specs

ENGINE
Manufacturer Mitsubishi
Model S4QL-D
Gross - Horsepower 4
Rated Engine Speed 2600
Number of Cylinders 4
Displacement-cu.in. 152.9
POWER TRAIN
Transmission Type Syncro Shuttle
Number Of Speeds 16 F / 16R
Brakes Wet Multi Disc
HYDRAULIC SYSTEM
Pump Type Dual Gear Pump
Max Total Flow gpm 12.3
Category, 3 Point Hitch 1
Hitch Lift Capacity, lb 2755
PTO
Type Independent
Control Electric/Hydro
Mid (rpm)-Option 2000
Rear (rpm) 540
Shaft Diameter in. (mm) 1 3/8 (35)
CAPACITIES
Fuel Tank, U.S. gal 9.5
DIMENSIONS
Overall Length, in. with 3P 132.2
Overall Width, in. 55.9
Wheelbase, in. 69.2
Height to Top of ROPS, in. 95.1
Min. Ground Clearance, in -
STANDARD TIRES
Turf Front 28x8.5 - 15
Turf Rear 41x14 - 20
Ag Front 9.5 - 16
Ag Rear 13.6 - 24
Industrial Front 28x8.5 -  15
Industrial Rear 41x14 - 20
WEIGHT
Total Weight, lb 3813
