R 4047H

JFor the absolutely easiest to use heavy duty 4WD compact tractor, the R4047H is it. The powerful 47 HP engine offers top of class power and the 3 range hydrostatic transmission (HST) provides precise control of your operating speed. Easily change speed and direction simply by using the forward or reverse pedals without clutching, moving a shuttle shifter or moving a gear lever. This allows you to easily steer with one hand while operating your loader or controlling your 3-point implement with the other hand. Nothing could be easier or more comfortable, especially when having to go back and forth a lot when doing dirt work. And when making a long run when mowing, simply set the cruise control.

When it comes to performance, the R4047H has more front end loader lift capacity than most similar competitive models, so you can work more efficiently. Plus our standard loader is quick attach, skid steer compatible and comes with the grill guard. Frequent implement changes are made easier with extendable lower links and the standard two sets of rear remote valves allow you to quickly connect to hydraulically operated implements like backhoes, rakes, grapples and wood splitters. Superior performance. More standard features. Extreme comfort. Maximum ease of use. Incredible value. That's the R4047H.


R-stylish-design

Modern Stylish Design

This small chassis compact 4WD is ergonomically designed and stylish with its distinctive blue color.

7_16_ta

Mitsubishi Tier 4 Engine

The Mitsubishi Tier 4 fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration. Easy Open One-Piece Hood - provides accessibility for easy maintenance.

Large Fuel Tank

The large 9.5 gallon capacity fuel tank provides long operation times.

Hydrostatic Transmission

Maximizes ease of use with effortless, clutch-less and instant speed and directional changes with a simple push of the pedal.

PTO On/Off Switch

Turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.

Simple Selections

Select your gear range or 2WD/4WD with the simple move of the levers.

3-Point Hitch

Category 1 with a hitch lift capacity of 1809 lbs. allows usage of a wide variety of implements. Drawbar Standard - increases the usefulness of the tractor without the additional optional cost. Extendable lower links-makes connecting implements easier.

Ergonomically Designed 3-point Hitch Controls

Easily accessible for maximum comfort and convenience.

Adjustable Seat with Seat Belt

Keeps you in a comfortable and safe position for maximum control.

Standard Foldable ROPS

Allows storage in low clearance buildings or sheds.

Flat Platform

Maximizes space and makes getting on and off tractor easier.

2 Sets of Remotes Standard

Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.

Rear Work Light

Never be in the dark with this hands-free functional feature that

Greater Steering Angle

Improves handling with tighter turning radius. Hydrostatic Power Steering - makes turning easier, improves control and reduces fatigue. Comfortable, easy to reach fender mounted front end loader joystick.

Your Choice of Tires

You can choose industrial or turf tires at no additional cost; subject to dealer inventory.

Front End Loader

Optional Quick Attach, Skid Steer Compatible Front End Loader - remove or attach in seconds. With 2250 for R3039 models lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.

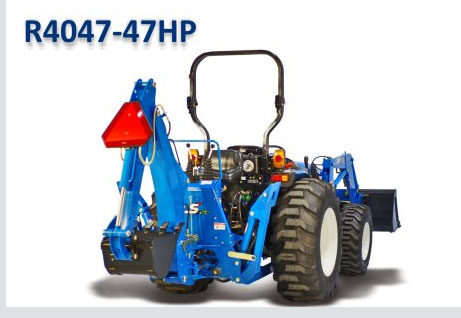

Backhoe

Optional Quick Attach Backhoe - remove or attach in seconds. With 89" digging depth, 2,679 lbs. of digging force and 180degree swing arc, it outperforms other in its class.

2000 RPM Mid PTO

Optional 2000 RPM Mid PTO


Tractor Specs

ENGINE
Manufacturer Mitsubishi
Model S4QL-D
Gross - Horsepower 47
Rated Engine Speed 2600
Number of Cylinders 4
Displacement-cu.in. 152.9
POWER TRAIN
Transmission Type Hydrostatic
Number Of Speeds 13 Range
Brakes Wet Multi Disc
HYDRAULIC SYSTEM
Pump Type Dual Gear Pump
Max Total Flow gpm 12.3
Category, 3 Point Hitch 1
Hitch Lift Capacity, lb 2755
PTO
Type Independent
Control Electric/Hydro
Mid (rpm)-Option 2000
Rear (rpm) 540
Shaft Diameter in. (mm) 1 3/8 (35)
CAPACITIES
Fuel Tank, U.S. gal 9.5
DIMENSIONS
Overall Length, in. with 3P 132.2
Overall Width, in. 55.9
Wheelbase, in. 69.2
Height to Top of ROPS, in. 95.1
Min. Ground Clearance, in -
STANDARD TIRES
Turf Front 28x8.5 - 15
Turf Rear 41x14 - 20
Ag Front 9.5 - 16
Ag Rear 13.6 - 24
Industrial Front 12x16.5
Industrial Rear 17.5L-24
WEIGHT
Total Weight, lb 3813
