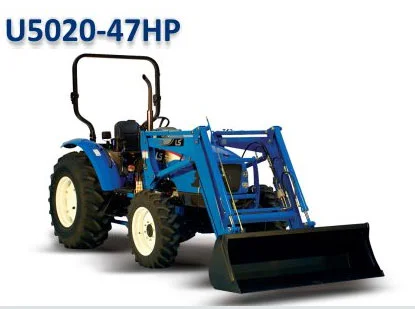

U 5020
With the amount of time you spend working your land with your tractor, it won't take you long to appreciate the long list of functional features packed into the U5020 as standard equipment. A more fully outfitted utility tractor means you can complete your tasks easier, quicker and more efficiently without expensive extras. You get 4WD, more operating speeds, fully synchronized gears and shuttle shift, selectable independent or manual PTO, 2 rear remote valves, and extendable lower links. The U5020 is truly a premium utility tractor without the premium price of competitive models.
The U5020 delivers powerful performance and the fully synchronized shuttle transmission allows you to change gears without stopping. With 16 forward and 16 reverse gears, you can more precisely select the operating speed for all of your various applications. And changing directions is easy with the shuttle shift.
The hefty 2,650 lbs. lift capacity of the quick attach, skid steer compatible, self-leveling front end loader is greater than the competition, so you can carry heavier loads and get your work done faster. The loader even comes standard with the grill guard. Easily select independent or manual PTO with the turn of a switch, so you can use the PTO in a mode best suited for your application. Also standard are two sets of rear remote valves for quick and easy attachment of hydraulically operated implements like rakes, backhoes, wood splitters and more. And the extendable lower links make connecting 3-point implements much easier. The more you look and the more you know, the more you will appreciate the performance and value of the U5020.
![]() |
Modern Stylish DesignThis small chassis compact 4WD is ergonomically designed and stylish with its distinctive blue color. |
![]() |
Mitsubishi Tier 4 Engine4 cylinder low vibration, fuel efficient yet powerful. Easy Open One-Piece Hood - provides accessibility for easy maintenance. |
![]() |
Large Fuel TankThe large 15.9 gallon capacity fuel tank provides long operation times. |
![]() |
Synchro Shuttle TransmissionMakes changing direction easier than competitive non-shuttle gear models. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application. |
![]() |
Simple SelectionsSelect your gear range or 2WD/4WD with the simple move of the levers. |
![]() |
3-Point Hitch with Telescopic Lower Links StandardCategory 1 (U5020 models) and Category 2 (U5030 models) with hitch lift capacity of 4,079 lbs. allows easier attachment of a wide variety of implements. Position and Draft Control - increases ease of use across a wider variety of implements. Drawbar Standard - increases the usefulness of the tractor without the additional optional cost. |
![]() |
Deluxe Adjustable Seat with Retractable Seat BeltKeeps you in a comfortable even during long operations. |
![]() |
Standard Foldable ROPSAllows storage in low clearance buildings or sheds. |
![]() |
Flat PlatformWith rubber mat and side mounted gear lever, maximizes space, improves operator comfort, and makes getting on/off tractor easier. |
![]() |
Full Functional Dash PanelImportant functional data is available at glance for optimum performance and control. |
![]() |
2 Sets of Remotes StandardAdds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options. Easy to reach fender mounted front end loader joystick. |
![]() |
Rear Work LightNever be in the dark with this hands-free functional feature that allows light to be directed wherever you need it. |
![]() |
Rear Work LightNever be in the dark with this hands-free functional feature that |
![]() |
Standard 7 Pin Electrical SocketProvides power for implements when needed. |
![]() |
Optional Quick Attach, Self-Leveling Front End Loader with Skid Steer Compatible BucketEasy to take off or attach loader and easily change loader attachments. With (2650 for U5020 models, 2900 U5030 models) lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class. |
![]() |
Your Choice of TiresYou can choose industrial or turf tires at no additional cost; subject to dealer inventory. |
![]() |
Quick Attach BackhoeRemove or attach in seconds. With 94" digging depth, 3,748 lbs. of digging force and 180⁰ swing arc, it outperforms other in its class. |
Tractor Specs
ENGINE | |
---|---|
Manufacturer | Mitsubishi |
Model | S4S |
Gross - Horsepower | 55 |
Rated Engine Speed | 2500 |
Number of Cylinders | 4 |
Displacement-cu.in. | 203.3 |
POWER TRAIN | |
---|---|
Transmission Type | Sychro Shuttle |
Number Of Speeds | 16F / 16R |
Brakes | Wet Multi Disc |
HYDRAULIC SYSTEM | |
---|---|
Pump Type | Implement Pump |
Max Total Flow gpm | 14.7 |
Category, 3 Point Hitch | 2 |
Hitch Lift Capacity, lb | 4079 |
No. of standard remote valves | 2 |
PTO | |
---|---|
Type | Fully Independent or Manual |
Control | Electric/Hydro |
Rear (rpm) | 540 |
CAPACITIES | |
---|---|
Fuel Tank, U.S. gal | 15.9 |
DIMENSIONS | |
---|---|
Overall Length, in. with 3P | 135.2 |
Min. Overall Width, in. | 66.9 |
Wheelbase, in. | 80.6 |
Height to Top of ROPS, in. | 102.3 |
Min. Ground Clearance, in | - |
STANDARD TIRES | |
---|---|
Ag Front | 9.5 - 20 |
Ag Rear | 16.9 - 24 |
Industrial Front | 10.5 / 80 - 18 |
Industrial Rear | 19.5L - 24 |
Turf Front | 36x13.5 - 15 |
Turf Rear | 36x16.9 - 24 |
WEIGHT | |
---|---|
Total Weight, lb | 4600 |
