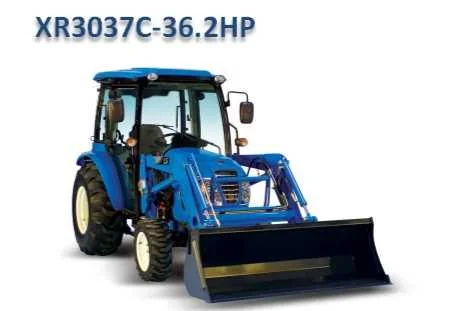

XR 3037C
The more time you spend working with your tractor, the more you will appreciate the long list of functional features packed into the XR3037C as standard equipment and the efficiency of the innovative TIER 4 engine. This medium duty compact 4WD tractor comes standard with more functional features so you can complete your medium duty tasks easier, more comfortably and more efficiently. Work in comfort regardless of the weather in the spacious, climate controlled cab. With more operating speeds, fully synchronized gears and shuttle shift, more front end loader lift capacity, selectable independent or manual PTO, 2 rear remote valves, and extendable lower links, the XR3037C is truly a premium tractor without the premium price of competitive models.
The XR3037C is powered by an innovative, eco-friendly, TIER 4 engine that delivers powerful performance that’s quiet and smooth. The fully synchronized shuttle transmission allows you to change gears without stopping. With 12 forward and 12 reverse gears, you can more precisely select the operating speed for all of your various applications. And you can easily change direction with the shuttle lever.
Our standard loader is quick attach, skid steer compatible and comes with the grill guard. Its hefty 2,182 lbs. lift capacity is greater than the competition, so you can carry heavier loads and get your work done faster. Easily select independent or manual PTO with the turn of a switch, so you can use the PTO in a mode best suited for your application. Use the standard two sets of rear remote valves for quick and easy attachment of hydraulically operated implements like rakes, backhoes, wood splitters and more. And the extendable lower links make connecting 3-point implements much easier. The more you look and the more you know, the more you will appreciate the performance and value of the XR3037C.
Modern Stylish DesignThis compact 4WD is ergonomically designed and stylish with its distinctive blue color. |
|
Shibaura ISM Tier 4 EngineThe Shibaura ISM Tier 4 meets EPA’s most stringent emission standards while delivering rated horsepower quietly with low vibration. Easy Open One-Piece Hood - provides accessibility for easy maintenance. |
|
Large Fuel TankThe large 12.4 gallon capacity fuel tank provides long operation times. |
|
Synchro Shuttle TransmissionThe Synchro Shuttle Transmission makes changing direction easier than competitive non-shuttle gear models. Fully synchronized 12 forward /12 reverse gear transmission provides more operating speeds and easier, smoother shifting than others in its class for superior control, precision and safe operations for virtually any application. |
|
PTO SwitchesYou can select manual or independent PTO and turn on or off with a simple turn of switch. |
|
Simple SelectionsSelect your range with a simple move of the lever. |
|
3-point HitchWith Telescopic Lower Links Standard - category 1 with a hitch lift capacity up 1808lbs. This allows for easier attachment of a wide variety of implements. Drawbar Standard – increases the usefulness of the tractor without the additional optional cost. Extendable lower links-makes connecting implements easier. |
|
Ergonomically Designed3-Point Hitch Controls and Fender Mounted Joystick - easily accessible for maximum comfort and convenience. Position and Draft Control - increases ease of use across a wider variety of implements. Easy to reach fender mounted front end loader joystick. |
|
Adjustable Seat with Seat BeltDeluxe Adjustable Seat with Seat Belt - keeps you in a comfortable even during long operations. |
|
Standard Foldable ROPSStandard Foldable ROPS (Open Station Models) - allows storage in low clearance buildings or sheds. |
|
Flat PlatformFlat Platform – with rubber mat, maximizes space, improves operator comfort, and makes getting on/off tractor easier. |
|
Dash PanelFull Function Dash Panel - important functional data is available at glance for optimum performance and control. |
|
Rear Remotes2 Sets of Remotes and Detent Function Standard - adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options. |
|
Choice of TiresYour Choice of Tires - choose industrial, Ag, or turf tires at no additional cost; subject to dealer inventory. |
|
Front End LoaderOptional Quick Attach(skid-steer) Front End Loader remove or attach in moments. With 2182 lbs. of lift capacity, it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class. |
|
Backhoe AttachmentOptional Quick Attach Backhoe - remove or attach in seconds. With 89” digging depth, 2,679 lbs. of digging force and 180° swing arc, it outperforms other in its class. |
Tractor Specs
ENGINE | |
---|---|
Manufacturer | Shibaura ISM |
Model | N843T-F |
Gross - Horsepower | 36.5 |
Rated Engine Speed | 2600 |
Number of Cylinders | 3 |
Displacement-cu.in. | 91.3 |
POWER TRAIN | |
---|---|
Transmission Type | Synchro Shuttle |
Number Of Speeds | 12F/12R |
Max Traveling Speed, mph (km/h) | -- |
Brakes | Wet, Multi Disc |
HYDRAULIC SYSTEM | |
---|---|
Pump Type | Dual Gear Pump |
Max Total Flow gpm | 12.4 |
Category, 3 Point Hitch | 1 |
Hitch Lift Capacity, lb | 1808 |
No. of standard remote valves | 2 |
PTO | |
---|---|
Type | Independent or Manual |
Control | Electric/Hydro |
Mid (rpm)-Option | 2000 |
Rear (rpm) | 540 |
Shaft Diameter in. (mm) | 1 3/8 (35) |
CAPACITIES | |
---|---|
Fuel Tank, U.S. gal | 12.4 |
DIMENSIONS | |
---|---|
Overall Length, in. with 3P | 121 |
Overall Width (with ag tires), in. | 60 |
Wheelbase, in. | 66 |
Height to Top of Cab, in. | 87 |
Min. Ground Clearance, in | - |
STANDARD TIRES | |
---|---|
Turf Front | 25x8.5-14 |
Turf Rear | 41x14-20 |
Industrial Front | 25x8.5-14 |
Industrial Rear | 43x16-20 |
Ag Front | 7-14 |
AG Rear | 11.2-24 |
WEIGHT | |
---|---|
Total Weight, lb | 3,590 |
