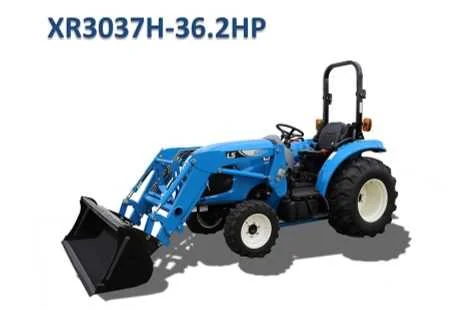

XR 3037H
The XR3037HC is a great choice when comfort and ease of use are your key drivers when selecting a medium duty 4WD compact tractor. The climate controlled cab you can get your work done no matter what the weather. The 3 range hydrostatic drive transmission allows you to more precisely control your operating speed and change directions simply by using the forward or reverse pedals… without clutching or moving a shuttle shifter or gear lever, enabling you to keep one hand on the steering wheel and the other on your loader joystick or 3-point hitch control levers. Nothing is as easy and comfortable, especially when having to go back and forth a lot during an operation such as front end loader work or using a box blade.
The XR3037HC even has cruise control so you can set a constant speed when desired. With more front end loader lift capacity than the competition, you can get the job done faster by lifting more in each load. Plus our standard loader is quick attach, skid steer compatible and comes with the grill guard. Hydraulically operated implements like rakes, backhoes, wood splitters and more can easily be connected to the two sets of rear remote valves. And attaching 3-point hitch implements is made easier with its extendable lower links. Drop by an LS Tractor dealer to see the stylish design and unmatched value of the XR3037HC.
|
Modern Stylish DesignThis compact 4WD is ergonomically designed and stylish with its distinctive blue color. |
|
Shibaura ISM Tier 4 EngineThe Shibaura ISM Tier 4 meets EPA’s most stringent emission standards while delivering rated horsepower quietly with low vibration. Easy Open One-Piece Hood - provides accessibility for easy maintenance. |
|
Large Fuel TankThe large 12.4 gallon capacity fuel tank provides long operation times. |
|
Synchro Shuttle TransmissionThe Synchro Shuttle Transmission makes changing direction easier than competitive non-shuttle gear models. Fully synchronized 12 forward /12 reverse gear transmission provides more operating speeds and easier, smoother shifting than others in its class for superior control, precision and safe operations for virtually any application. |
|
PTO SwitchesYou can select manual or independent PTO and turn on or off with a simple turn of switch. |
|
Simple SelectionsSelect your range with a simple move of the lever. |
|
3-point HitchWith Telescopic Lower Links Standard - category 1 with a hitch lift capacity up 1808lbs. This allows for easier attachment of a wide variety of implements. Drawbar Standard – increases the usefulness of the tractor without the additional optional cost. Extendable lower links-makes connecting implements easier. |
|
Ergonomically Designed3-Point Hitch Controls and Fender Mounted Joystick - easily accessible for maximum comfort and convenience. Position and Draft Control - increases ease of use across a wider variety of implements. Easy to reach fender mounted front end loader joystick. |
|
Adjustable Seat with Seat BeltDeluxe Adjustable Seat with Seat Belt - keeps you in a comfortable even during long operations. |
|
Standard Foldable ROPSStandard Foldable ROPS (Open Station Models) - allows storage in low clearance buildings or sheds. |
|
Flat PlatformFlat Platform – with rubber mat, maximizes space, improves operator comfort, and makes getting on/off tractor easier. |
|
Dash PanelFull Function Dash Panel - important functional data is available at glance for optimum performance and control. |
|
Rear Remotes2 Sets of Remotes and Detent Function Standard - adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options. |
|
Choice of TiresYour Choice of Tires - choose industrial, Ag, or turf tires at no additional cost; subject to dealer inventory. |
|
Front End LoaderOptional Quick Attach(skid-steer) Front End Loader remove or attach in moments. With 2182 lbs. of lift capacity, it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class. |
|
Backhoe AttachmentOptional Quick Attach Backhoe - remove or attach in seconds. With 89” digging depth, 2,679 lbs. of digging force and 180° swing arc, it outperforms other in its class. |
Tractor Specs
| ENGINE | |
|---|---|
| Manufacturer | Shibaura ISM |
| Model | N843T-F |
| Gross - Horsepower | 36.5 |
| Rated Engine Speed | 2600 |
| Number of Cylinders | 3 |
| Displacement-cu.in. | 91.3 |
| POWER TRAIN | |
|---|---|
| Transmission Type | Hydrostatic |
| Number Of Speeds | 3 Ranges |
| Max Traveling Speed, mph (km/h) | -- |
| Brakes | Wet, Multi Disc |
| HYDRAULIC SYSTEM | |
|---|---|
| Pump Type | Dual Gear Pump |
| Max Total Flow gpm | 13.7 |
| Category, 3 Point Hitch | 1 |
| Hitch Lift Capacity, lb | 1808 |
| No. of standard remote valves | 2 |
| PTO | |
|---|---|
| Type | Independent |
| Control | Electric/Hydro |
| Mid (rpm)-Option | 2000 |
| Rear (rpm) | 540 |
| Shaft Diameter in. (mm) | 1 3/8 (35) |
| CAPACITIES | |
|---|---|
| Fuel Tank, U.S. gal | 12.4 |
| DIMENSIONS | |
|---|---|
| Overall Length, in. with 3P | 121 |
| Overall Width (with ag tires), in. | 60 |
| Wheelbase, in. | 66 |
| Height to Top of Cab, in. | 87 |
| Min. Ground Clearance, in | - |
| STANDARD TIRES | |
|---|---|
| Turf Front | 25x8.5-14 |
| Turf Rear | 41x14-20 |
| Industrial Front | 25x8.5-14 |
| Industrial Rear | 43x16-20 |
| Ag Front | 7-14 |
| AG Rear | 11.2-24 |
| WEIGHT | |
|---|---|
| Total Weight, lb | 3,567 |
