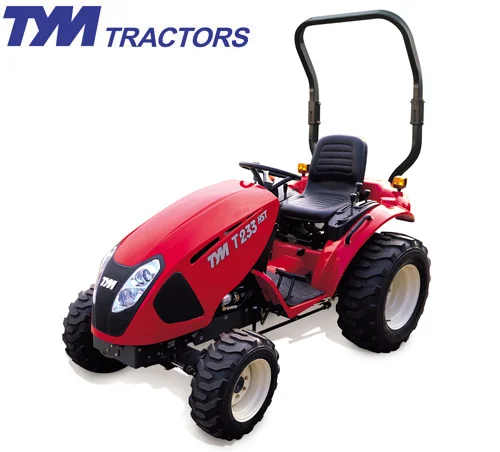

T233-HST
This Model is no longer available from TYM Tractors. This page is for specifications and the manuals for this model.
The smallest member of the TYM family, at this time, the T233 is a perfect combination of form and function. Ideally suited for turf care, nursery work and those jobs that you just need a little help with. The T233 can also equip optional turf tires. Designed for use with category I implements the T233 is not just pretty it's pretty impressive!
| ENGINE | |
|---|---|
| Manufacturer | Mitsubishi |
| Model | S3L |
| Gross - Horsepower(kw) | 23(16.9) |
| Rated Engine Speed | 2700 |
| Number of Cylinders | 3 |
| Displacement-cu.in.(cc) | 68.7(1125) |
| POWER TRAIN | |
|---|---|
| Transmission Type | HST |
| Number Of Speeds | 2 Range |
| Max Traveling Speed, mph (km/h) | 10.5(17) |
| Brakes | Wet Disc |
| HYDRAULIC SYSTEM | |
|---|---|
| Pump Type | Dual Gear Pump |
| Max Total Flow gpm (L/Min) | 7.6(28.9) |
| Category, 3 Point Hitch | 1 |
| Hitch Lift Capacity, lb (kg) | 1534(700) |
| No. of standard remote valves | Option 1 |
| PTO | |
|---|---|
| Type | Independent |
| Control | Electric/Hydro |
| Mid (rpm)-Option | 2000 |
| Rear (rpm) | 540 |
| Shaft Diameter in. (mm) | 1 3/8 (35) |
| CAPACITIES | |
|---|---|
| Fuel Tank, U.S. gal(L) | 6.6(25) |
| DIMENSIONS | |
|---|---|
| Overall Length, in. (mm) with 3P | 107.8(2740) |
| Overall Width, in. (mm) | 52.8(1342) |
| Wheelbase, in. (mm) | 58.3(1480) |
| Height to Top of ROPS, in. (mm) | 97.2(2470) |
| Min. Ground Clearance, in (mm) | 7.71(196) |
| STANDARD TIRES | |
|---|---|
| Industral Front | 23x8.5-12 |
| Indestrial Rear | 12x16.5 |
| WEIGHT | |
|---|---|
| Total Weight, lb(kg) | 2028(920) |
| CAB SPECS | |
|---|---|
| Height, in. (mm) with 3P | 66.9(1700) |
| Width, in. (mm) | 44.5(1130) |
| Length, in. (mm) | 54.7(1390) |
| Wrok Lamps Front | 2 |
| Work Lamps Rear | 1 |
| Room Lamp | Standard |
| Front Wiper | Standard |
| Doors | 2 |
| Floor Sealing | Standard |
| Rear Window (onpen/Close) | Standard |
| Heater Front Vents | 2 Outlets |
