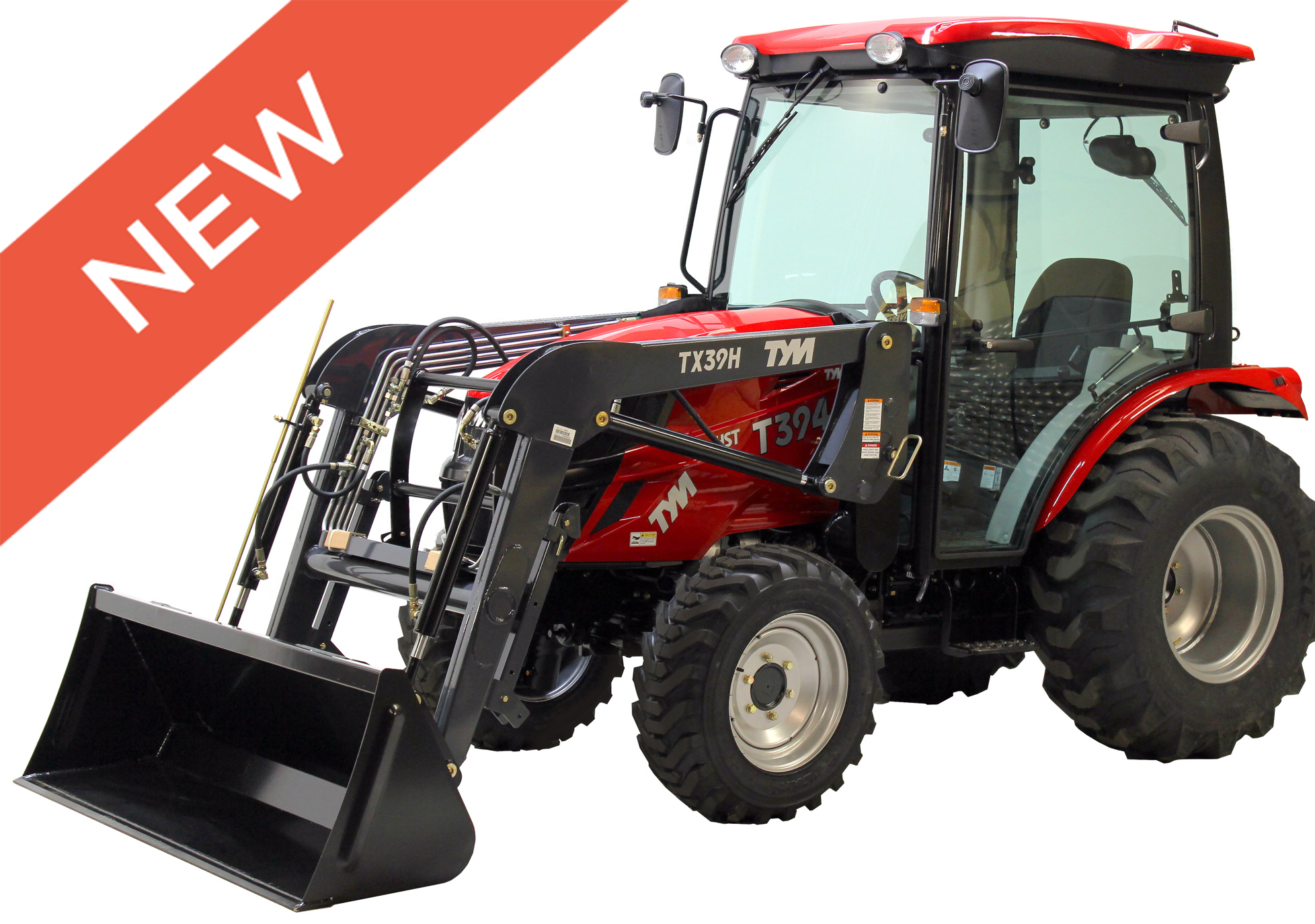

T394H
The T394, more fun per acre than any machine in its class. For any work you do, a workhorse always helps. With that in mind, we’ve crafted our newest addition to the subcompact line to provide the utmost versatility down to the last detail.
Check below for this tractor's features and specs, and give us a call if you have any questions!
|
HYDRAULIC LIFT CAPACITY - 2646 LBSThe lift capacity of 2646 lbs provides sufficient power to control the rear implement and the position level sets the height of the implement just as you want it. |
|
YANMAR DIESEL ENGINEReliable, powerful, and rugged. 37.4 gross horsepower Maximum fuel efficiency 3 cylinder, liquid cooled diesel performance. |
|
ROBUST FRONT AXLES AND POWER STEERINGDouble acting power steering system gives a smoother and effortless turn and its solid front axle provides utmost satisfaction in any type of ground work. |
|
HEATED AND AIR CONDITIONED CABINThe T394 CAB model comes standard with full heat, air conditioning, and a new and improved air filtration system. |
|
HYDRO STATIC TRANSMISSIONHydro static transmission with a 3 range speed control provides comfortable and easy operating conditions. |
|
PTO ON/OFF SWITCHConveniently located PTO on and off switch with the light indicator enables you to control the PTO at your finger tips. |
|
FACTORY INSTALLED JOYSTICK LEVERFactory Installed joystick lever and remote valves for front attachment are standard in T394 and its family model. |
|
ERGONOMIC AND SPACIOUS OPERATOR SEATControl levers are ergonomically located by considering the operator’s hand movements. |
|
ULTRA BRIGHT HEADLIGHTS AND WORK LAMPSHydro static transmission with a 2 range speed control provides comfortable and easy operating conditions. |
|
ONE-TOUCH HOOD OPENThe T394 comes equipped with hydraulics and an easily accessible pull pin to allow for a quick and easy way to maintenance your tractor. |
|
CONVENIENTLY LOCATED RADIATOR SCREEN NETRadiator screen is easily taken out without any tool for cleaning dust. |
|
WINDSHIELD WIPERSThe T394 offers front and rear windshield wipers in order to keep you going through even the toughest weather. |
|
DIGITAL INSTRUMENT PANELThe digital instrument panel provides a clear display for engine errors, gas gauge, as well as speed(rpm). |
Tractor Specs
Engine
| Engine Manufacturer / Model | Yanmar 3TNV88-CR |
| Type | Natural Aspiration |
| HP-Gross | 37.4 (27.5) |
| PTO HP (kw) | 28.8 (21.5) |
| Rated Engine Speed | 3000 |
| Number of Cylinders | 3 |
| Displacement-cu.in (cc) | 100.2 (1642) |
| Air Cleaner | Dual Dry |
| Alternator | 12V55A |
| Fuel System Type | CRDI |
Powertrain
| Transmission Type | HST |
| Number of Speeds | Infinite / 3 Range |
| Max Traveling Speed, mph (km/h) | 16.8 (27) |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | N/A |
Hydraulic System
| Pump Type | Dual Gear Pump |
| Implement Pump Cap, gpm (L/min) | 6.4 (24.4) |
| Steering Pump Cap, gpm (L/min) | 4.6 (17.6) |
| Max Total Flow, gpm (L/min) | 11 (42.0) |
| Category, 3 Point Hitch | 1 |
| Hitch Lift Capacity, lb (kg) | 2646 (1200) |
| at 24 inches behind link ends, lb (kg) | 1764 (800) |
| Lift Control Type | Position |
| Joy Stick Valve | Standard |
| No. of standard remote valves | 1 |
PTO
| PTO Type | Independent |
| PTO Control | Electric / Hydro |
| PTO Mid (rpm) - Optional | 2000 |
| PTO Rear (rpm) | 540 |
| PTO Shaft Diameter in. (mm) | 1 3/8 (35) |
Capacities
| Fuel Tank, U.S. gal. (L) | 9.0 (34) |
| Cooling System, U.S. qt (L) | 7.4 (7) |
| Crankcase (with filter) U.S. qt (L) | 6.0 (5.7) |
| Trans & Hydr System, U.S. gal (L) | 9.25 (35) |
| Front Axle qt (L) | 8.7 (8.2) |
Dimensions
| Overall Length, in (mm) with 3P | 126 (3200) |
| Overall Width, in (mm) | 53.5 (1360) |
| Wheelbase, in (mm) | 66.1 (1680) |
| Height to Top of ROPS, in (mm) | 94.4 (2400) |
| Min Ground Clearance, in (mm) | 12.8 (325) |
| Min Turn Radius, in (mm) with Brakes | 94.4 (2400) |
| Min Turn Radius, in (mm) w/o Brakes | 116 (2950) |
| Total Weight, lb (kg) | 3020 (1370) |
