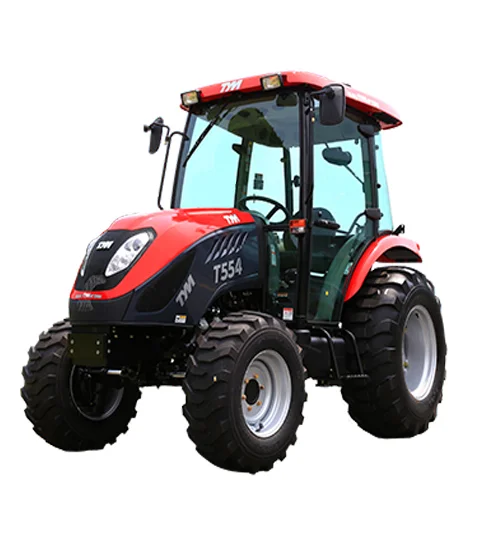

T554 & T554 CAB
TYM's T554 compact tractor is the choice for that big project you have lined up or that tough job waiting to get done. Foldable ROPS, Rear wiper (CAB models only), projection head lamps, dual air filter, and hydrostatic power steering will deliver the workforce you need.
Check below for this tractor's features and specs, and give us a call if you have any questions!
|
Robust Front Axles and Power SteeringDouble acting power steering system gives a smoother and effortless turn and its solid front axle provides utmost satisfaction in any type of ground work. |
|
One-touch Hood OpenHood is widely open by the one touch lever and easy access to every corner of the engine room for daily check-up and maintenance. |
|
Conveniently Located Radiator Screen NetRadiator screen is easily taken out without any tool for cleaning dust. |
|
Dual Gear PumpT433 and its family are equipped with the separate steering pump and it enables smooth turning when using hydraulic drive implements. |
|
Dual Air FilterHigh capacity dual air filters guarantee superior engine performance and extend the life of the engine. |
|
1323lb Hydraulic Lift CapacityThe lift capacity of 1323lb provides the sufficient power to control the rear implement and the position level sets the height of the implement just as you want. |
|
PTO On/Off SwitchConveniently located PTO on and off switch with the light indicator enables you to control the PTO at your finger tips. |
|
Factory Installed Joystick LeverFactory installed joystick level and remote valves for front attachment is standard in T433 and it's family model. |
|
Hydro Static TransmissionHydro static transmission with a 2 range speed control provides comfortable and easy operating conditions. |
|
Ergonomic & Spacious Operator SeatControl levers are ergonomically located by considering the operator's hand movements. |
|
LoaderThe TYM TX5000 Loader features a quick disconnect skid steer loader & bucket standard. |
|
BackhoeThe BT400 Backhoe is specifically designed and fabricated for TYM models and provide the ability to perform an almost endless number of lifting and loading tasks. |
Tractor Specs
| ENGINE | |
|---|---|
| Manufacturer | Yanmar |
| Model | 4TNV86T-CR |
| Gross - Horsepower(kw) | 55.1(41.1) |
| Rated Engine Speed | 2800 |
| Number of Cylinders | 4 |
| Displacement-cu.in.(cc) | 127.6(2091) |
| POWER TRAIN | |
|---|---|
| Transmission Type | Sync/Shuttle |
| Number Of Speeds | 16/F 16/R |
| Max Traveling Speed, mph (km/h) | 18.4(29.7) |
| Brakes | Wet Disc |
| Clutch | Dry Single Plate |
| HYDRAULIC SYSTEM | |
|---|---|
| Pump Type | Dual Gear Pump |
| Max Total Flow gpm (L/Min) | 14.5(55.1) |
| Category, 3 Point Hitch | 1 |
| Hitch Lift Capacity, lb (kg) | 3314(1503) |
| No. of standard remote valves | Option 2 |
| PTO | |
|---|---|
| Type | Independent |
| Control | Electric/Hydro |
| Mid (rpm)-Option | N/A |
| Rear (rpm) | 540 |
| Shaft Diameter in. (mm) | 1 3/8 (35) |
| CAPACITIES | |
|---|---|
| Fuel Tank, U.S. gal(L) | 17(60) |
| DIMENSIONS | |
|---|---|
| Overall Length, in. (mm) with 3P | 141.3(3590) |
| Overall Width, in. (mm) | 63.8(1620) |
| Wheelbase, in. (mm) | 76.2(1935) |
| Height to Top of ROPS, in. (mm) | 99.6(2530) |
| Min. Ground Clearance, in (mm) | 13.8(350) |
| STANDARD TIRES | |
|---|---|
| Agricultural Front | 9.5-16 |
| Agricultural Rear | 13.6-24 |
| Industral Front | 12-16.5 R4 |
| Indestrial Rear | 17.5L-24 R4 |
| WEIGHT | |
|---|---|
| Total Weight, lb(kg) | 4188(1900) |
| Total Weight Cab Model, lb(kg) | ---(---) |
