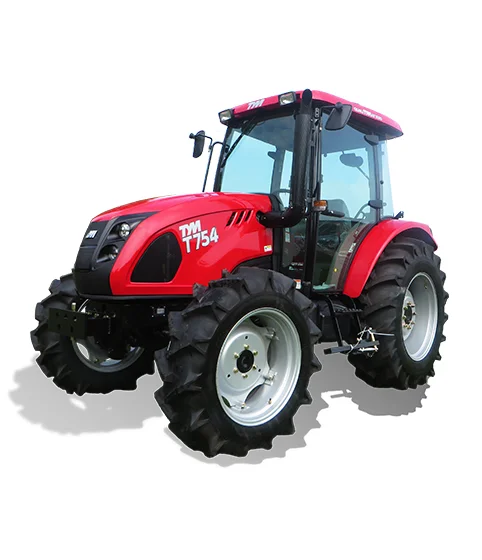

T754 & T754 CAB

The T754 features an all new Deutz engine with improved emissions standards and more than enough horsepower to get the job done. Equipped with your choice of attachments and our famous 5 year warranty coverage, we guarantee many years of quality performance to come.

Check below for this tractor's features and specs, and give us a call if you have any questions!

Click here to go back to the TYM page.

img_11

Robust Front Axles and Power Steering

Double acting power steering system gives a smoother and effortless turn and its solid front axle provides utmost satisfaction in any type of ground work.
7_16_ta

One-touch Hood Open

Hood is widely open by the one touch lever and easy access to every corner of the engine room for daily check-up and maintenance.
radiator

Conveniently Located Radiator Screen Net

Radiator screen is easily taken out without any tool for cleaning dust.
woodchipper

Dual Gear Pump

T433 and its family are equipped with the separate steering pump and it enables smooth turning when using hydraulic drive implements.
woodchipper

Dual Air Filter

High capacity dual air filters guarantee superior engine performance and extend the life of the engine.
woodchipper

1554kg Hydraulic Lift Capacity

The lift capacity of 1554kg provides the sufficient power to control the rear implement and the position level sets the height of the implement just as you want.
woodchipper

PTO On/Off Switch

Conveniently located PTO on and off switch with the light indicator enables you to control the PTO at your finger tips.
woodchipper

Factory Installed Joystick Lever

Factory installed joystick level and remote valves for front attachment is standard in T433 and it's family model.
woodchipper

Hydro Static Transmission

Hydro static transmission with a 2 range speed control provides comfortable and easy operating conditions.
woodchipper

Ergonomic & Spacious Operator Seat

Control levers are ergonomically located by considering the operator's hand movements.
loader

Loader

  • Lift capacity at pivot pin: 4129lb
  • Breakout force at ground level: 6025lb
  • Max lift height to pivot pin: 141.7"
  • Bucket capacity: 20.0ft³
  • Max dump angle: 52°
  • Max rollback angle: 52°

Tractor Specs

ENGINE
Manufacturer Deutz
Model TCD 2.9
Gross - Horsepower(kw) 74(55.3)
Rated Engine Speed 2200
Number of Cylinders 4
Displacement-cu.in.(cc) 177(2900)
POWER TRAIN
Transmission Type Sync/Shuttle
Number Of Speeds 16/F 16/R
Max Traveling Speed, mph (km/h) 20.1(32.4)
Brakes Wet Disc
Clutch Dry Single Plate
HYDRAULIC SYSTEM
Pump Type Dual Gear Pump
Max Total Flow gpm (L/Min) 16.1(61.1)
Category, 3 Point Hitch 2
Hitch Lift Capacity, lb (kg) 3426(1554)
No. of standard remote valves Option 2
PTO
Type Independent
Control Electric/Hydro
Mid (rpm)-Option N/A
Rear (rpm) 540/540E(750)
Shaft Diameter in. (mm) 1 3/8 (35)
CAPACITIES
Fuel Tank, U.S. gal(L) 23.8(90)
DIMENSIONS
Overall Length, in. (mm) with 3P 157.5(4002)
Overall Width, in. (mm) 76.4(1940)
Wheelbase, in. (mm) 86.1(2188)
Height to Top of ROPS, in. (mm) 103.3(2624)
Min. Ground Clearance, in (mm) 18.3(465)
STANDARD TIRES
Agricultural Front 11.2-24
Agricultural Rear 16.9-30
Industral Front 15-19.5 R4
Indestrial Rear 18.4-24 R4
WEIGHT
Total Weight, lb(kg) 6052(2745)
Total Weight Cab Model, lb(kg) ---(---)
